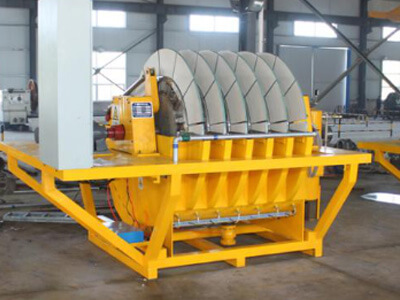

Ceramic vacuum filter

Ceramic vacuum filter

[Introduction] Under the action of pressure, the liquid (or gas) in suspension passes through the permeable medium (filter medium) and the solid particles are intercepted by the medium, thus realizing the separation of liquid and solid.
[Filtration area] 1-150m2
[Application] It is widely used in copper, iron, gold, silver, tin, aluminium, lead, zinc, nickel, cobalt, palladium, molybdenum, chromium, inscription, sulfur, phosphorus, coal, silicon, quartz, mica, tin earth and other concentrates, tailings dewatering, zinc oxide, lead oxide, zinc sulfide, electrolytic slag, leaching slag, slag dewatering and environmental protection industries.
[Improvement] Using microporous ceramics as filter medium can save energy consumption by more than 90%. Material fineness ranges from 200 mesh to 450 mesh and various ultrafine materials.

Chat With Us Leave Message
  1. High vacuum, low water content of filter cake, high efficiency and high recovery.
  2. The filtrate is clear and transparent, the working environment is clean and pollution-free.
  3. High degree of automation, simple operation, stable and reliable operation. Continuous operation, high utilization of equipment.
  4. The energy-saving effect is remarkable, the operation cost is low, the expensive filter cloth is not needed, and the spare parts consumption is less. Compared with the traditional filter equipment, the energy consumption can be saved by more than 90%.
  5. The equipment has excellent performance, compact structure, low installation cost and convenient maintenance.

The commonly used filter media in industry are granular media, fabric media, porous media and ceramic media. Under the action of pressure, the liquid (or gas) in the suspension passes through the permeable medium (filter medium), and the solid particles are intercepted by the filter medium, thus realizing the separation of liquid and solid.

Model

Filtration Area

m2

Filter Plate

Tank Volume

m3

Total Power

kw

Motion Power

kw

Dimension

m

SY-1

1

12

0.21

3.5

2

1.6×1.4×1.5

SY-4

4

24

1

7

3

2.4×2.5×2.1

SY-6

6

24

1.2

7

6

2.4×2.9×2.5

SY-9

9

36

1.7

9

7

2.7×2.9×2.5

SY-15

15

60

2.7

11.5

8

3.3×3.0×2.5

SY-21

21

84

4

13.5

9

4.6×3.0×2.6

SY-27

27

108

5

17

11

5.2×3.0×2.6

SY-36

36

144

7

23

16

6.6×3.0×2.6

SY-45

45

180

8.5

25

19

7.5×3.0×2.6

SY-60

60

180

12.5

33

22

7.5×3.3×3.0

SY-80

80

240

16.2

40

24

9.0×3.3×3.0

SY-102

102

204

18.5

53

35

8.8×3.6×3.3

SY-120

120

240

20

60

40

9.7×3.6×3.3

SY-150

150

300

24

75

47

11.2×3.6×3.3
