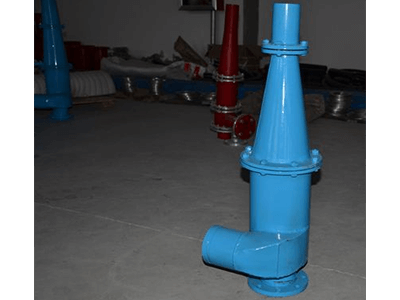

[Introduction] Cyclone feeding along open line direction.
[Capability] <542 m3/h [Application] The working modes of hydrocyclones include classification, concentration, dehydration, desliming, sand removal, washing and ultra-fine classification. [Improvement] Involute feeding mode is adopted, which is beneficial to increase the centrifugal force of the material, improve the classification effect and greatly reduce the wear of the feeding box.
Chat With Us
Leave Message
Advantages
Structure
When the mixed liquid to be separated enters the hydrocyclone at a certain pressure from the feed port of the hydrocyclone, a strong three-dimensional elliptical strong rotational shear turbulence is generated. Due to the different density of particles, the centrifugal force, centripetal buoyancy, fluid drag force and other sizes are different. Under centrifugal sedimentation, most of the coarse particles (or heavy phases) are discharged through the underflow port of the cyclone, while most of the fine particles (or light phases) are discharged by the overflow pipe, thus achieving the purpose of separation and classification.
Technical Parameter
|
Model |
Specification |
Capacity m3/h |
Particle Size μm |
Overflow Outlet Diameter mm |
|
XC II F 150 |
150 |
10 ~23 |
25 ~74 |
30 ~50 |
|
XC II F 200 |
200 |
17 ~38 |
28 ~80 |
40 ~65 |
|
XC II F 250 |
250 |
24 ~53 |
30 ~82 |
65~100 |
|
XC II F 300 |
300 |
40~100 |
36 ~90 |
65~120 |
|
XC II F 350 |
350 |
56~118 |
40~100 |
80~120 |
|
XC II F 375 |
375 |
74~157 |
42~105 |
90~135 |
|
XC II F 450 |
450 |
90~192 |
44~110 |
100~150 |
|
XC II F 500 |
500 |
128~300 |
50~115 |
130~220 |
|
XC II F 550 |
550 |
155~368 |
52~120 |
140~240 |
|
XC II F 600 |
600 |
200~468 |
57~125 |
160~260 |
|
XC II F 660 |
660 |
237~524 |
60~130 |
180~280 |
