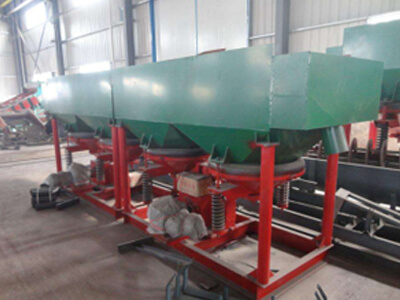

Jigger

[Introduction] The gravity separation equipment for mineral separation is based on the principle of different sedimentation velocities of minerals in vertical alternating flow.

[Capability] 1-25 t/h

[Application] The jigger is a fixed sieve type. It is suitable for separating metal ores, such as tungsten-bearing and gold-bearing placers and tin concentrates. It can be used for separating fine and coarse materials. The maximum feed size is 6-8 mm.

[Improvement] The sawtooth wave jigger uses conical slide valve, which has low failure rate and low energy consumption. It can meet the separation needs of different materials and improve the processing capacity by more than 35%.

Chat With Us Leave Message

Advantages

  1. The jig stroke and stroke are easy to adjust, and advanced frequency conversion speed regulation technology is adopted to facilitate operation and management.
  2. Large processing capacity and wide range of sorting granularity.
  3. Small area and large capacity per unit area.
  4. Adopt multi-room shared numerical control air valve technology.



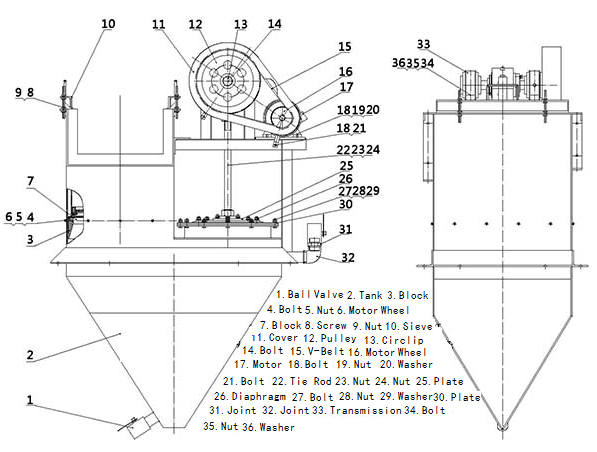

Structure

Jigging pulsation curve shows zigzag waveform, which makes ascending water faster than descending water flow, shortens ascending time and prolongs descending time. It overcomes the shortcomings of sinusoidal pulsation curve jig which produces ascending and descending water flow with the same action time, enhances the bed looseness, alleviates the inhalation effect, makes the heavy mineral particles in minerals fully settle, and greatly improves the enrichment ratio and recovery of equipment. Rate.



Technical Parameter

Model

Jig chamber shape

Jig chamber Area ㎡

Stroke mm

Frequency Times/Min

Feeding Size mm

Water

Capacity t/h

Power kw

Weight kg

Flow t/h

Pressure Mpa

JT0.57-1

Trapezoid

0.57

0-17

80-160

<10

2~5

>0.1

1~2.5

1.5

610

JT1-1

Trapezoid

1.04

0-21

2~4

2.2

900

JT1.5-2

rectangle

1.5

0-25

3~6

3

1520

JT1.5-2S

rectangle

1.5

0-30

3~6

1.5×2

1780

JT2-2

rectangle

2.28

0-17

4~8

3

1640

JT2-2S

rectangle

2.28

0-21

4~8

1.5×2

1900

JT3-1

rectangle

3.3

0-20

60-120

5~10

5.5

3260

JT4-2S

rectangle

4

0-25

6~12

4×2

4680

JT5-2S

Trapezoid

4.48

0-35

7~15

5.5×2

4750

JT1-2S

rectangle

1

0-35

50-100

<30

2~6

1.5×2

1180

JT3-2S

rectangle

3

0-30

6~12

5.5×2

3720
