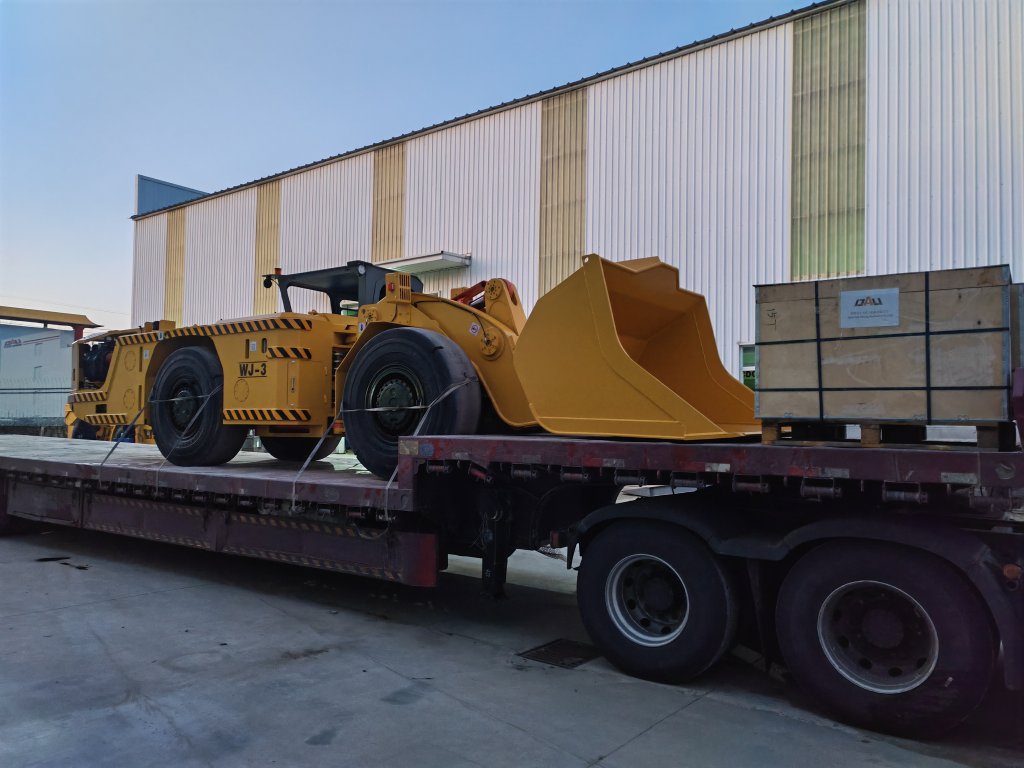

Delivery day of the underground mining scooptrams WJ-3

Delivery day of the underground mining scooptrams WJ-3

DALI WJ-3 is a 7 ton Load-Haul-Dump (LHD) developed specially for underground use for the most diverse application, including development work, mining and tunneling construction. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety in operations. It is easy to operate and maintain, and features a cab located in the rear frame to ensure increased operator safety.

Components & Inclusions

Engine:DEUTZ BF6M1013EC / 165kw

Transmission:DANA RT32360

Torque Converter:DANA C273

Axle:DANA 16D2149

Tire:17.5-25 PR20 L-5S TT

Optional

VOLVO ENGINE TAD850 series

Cummins ENGINE QSB6.7 160kw

Remote control system

Auto fire suppression system

Auto lubrication system

Rear camera system

Air conditioning & heater

The WJ-3 mining loader is a popular industry workhorse that is the ideal choice for a wide variety of applications.It delivers high availability and hauls more every load, every cycle and every shift when compared to competitive loaders in its size class.

Scooptram is a shovel transportation machine that uses a bucket to shovel the soil and load the soil into the bucket for transportation. The low-cost and efficient scooptram is one of the important mining equipment. Our WJ series scooptram are suitable for different mine conditions.A scooptram is similar to a front end loader with the exception of height / profile and bucket capacity. This low profile piece of heavy equipment is used in underground mining and it transports blasted or loose rock ore in an underground mine. A scoop or bogger will work the face and load ore cars which are then used to haul material that will ultimately be processed in a mill.

How scooptram works——The scooptram machine has a small distance from the ground, and the middle of the bucket relies on the expansion and contraction of the tipping cylinder to realize the scooptram’s bucket movement. Generally scooptram used in relatively flat places with little resistance. The following is a detailed description of the scooptram definition from the characteristic structure and use.

Typically, the model number will depict the capacity of the underground loader. For example, WJ-1 is a 1 cubic meter capacity underground loader.

The scooptram is used to load and dump ores in the underground mine tunnel. The working efficiency of scooptram has a great influence on the progress of the project. Here are some factors that have a greater impact on the working efficiency of scooptram.

The first is the operator’s proficiency. If the operator is not proficient to operate, it will not only affect the working efficiency, but also cause trouble in the usage. It will also cause great damage to the equipment and personnel, so the staff must have skilled experience before they can operate the machine.

The second factor is the daily maintenance before the operation of the machine, which requires routine inspection and lubrication before work to ensure that the equipment does not work with failure.

Features in scooptram definition

Scooptram has low requirements on driving roads

Scooptram has flexible operation and convenient operation

Scooptram has simple structure

Scooptram has high construction efficiency

Structure in scooptram definition

Scooptram is characterized in that the bucket with a shovel mechanism is composed of a bucket body, a sliding baffle, a rotating baffle, a shovel blade and a ground breaking knife; on both side walls of the bucket body, there is a pole shaft and a bucket body.

Wheel/traction beam/frame/hydraulic device/bucket with shovel mechanism/support structure and frame lifting adjustment mechanism

We produce 0.6 cubic meter (WJD-0.6), 1 cubic meter (WJD-1), 1.5 cubic meters (WJD-1.5), and 2 cubic meters (WJD-2) electric scooptrams, and 0.6 cubic meter (WJ-0.6), 1 cubic meter (WJ-1), 1.5 cubic meters (WJ-1.5), 2 cubic meters (WJ-2), 3 cubic meters (WJ-3), 4 cubic meters (WJ-4), 6 cubic meters (WJ-6), and 8 cubic meters (WJ-8) diesel scooptrams. The color, appearance, layout, logo, etc. of the scooptram can be customized according to customer needs.

Contact us for more information and a quote. Let’s make mining safer and more efficient together!
