How to Troubleshoot Common Problems of an Underground LHD?

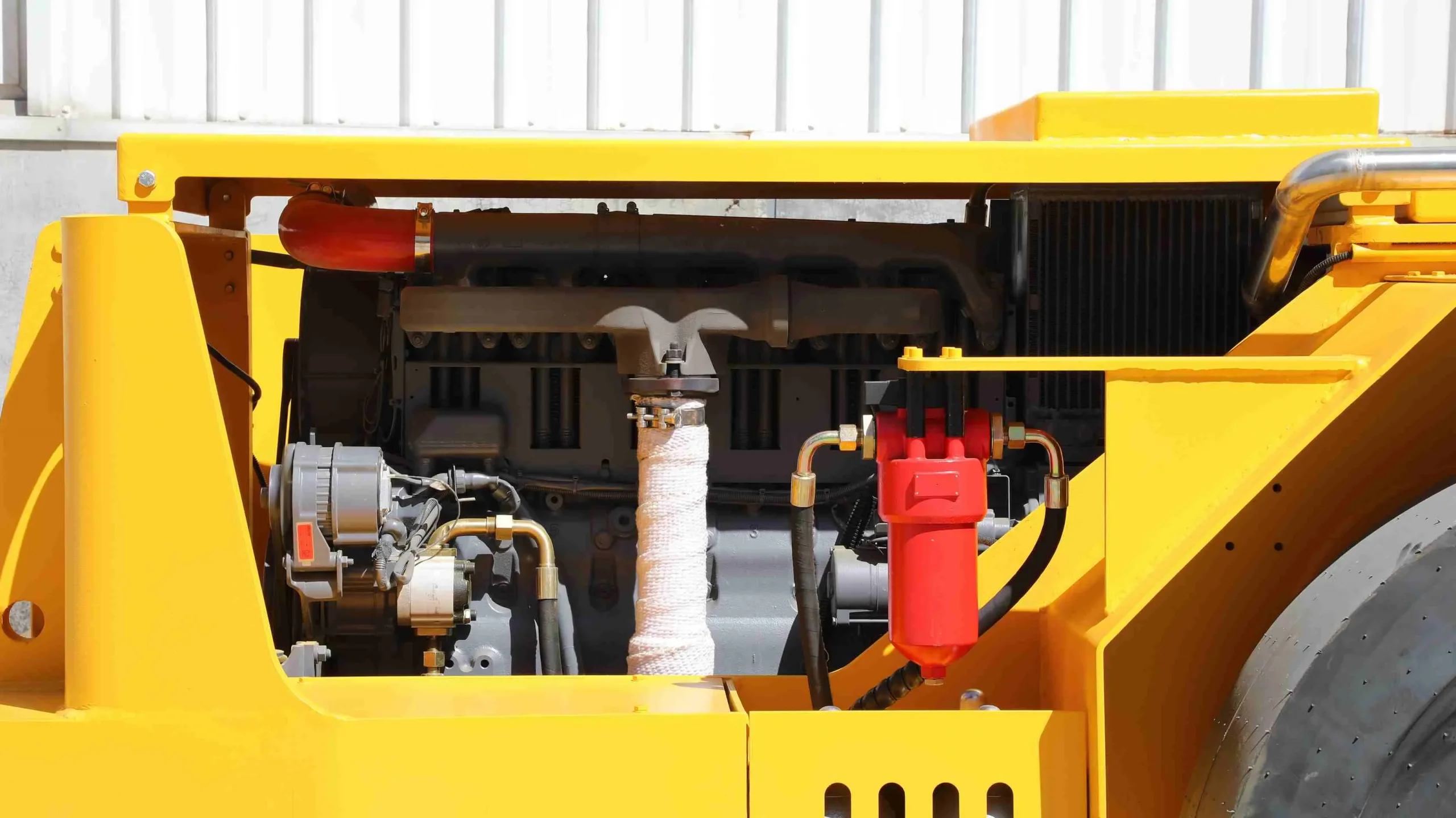

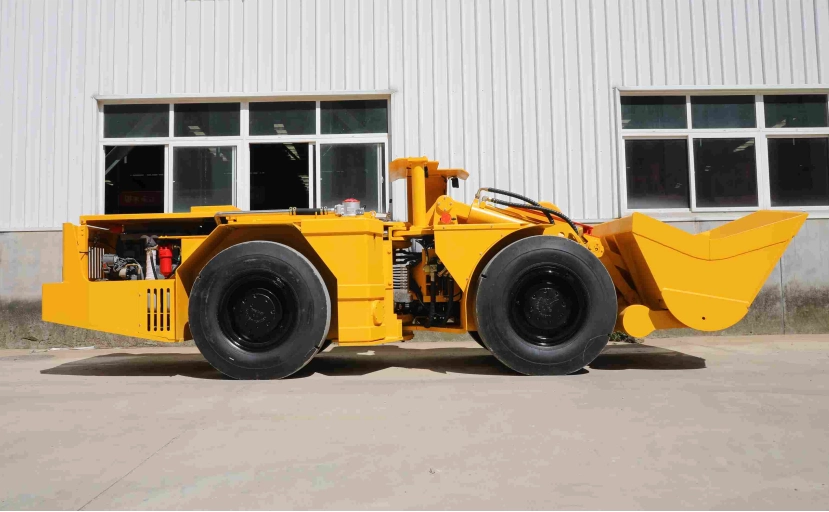

When an underground Load Haul Dump (LHD) suddenly won’t start or starts acting oddly, lost time can get expensive fast. Knowing the main reasons for these troubles helps save hours. It also makes the machine last longer. Take the DALI Diesel LHD WJ-2, for example. It has a DEUTZ F6L914 engine and good safety features. This setup makes fixing problems easier if you check the right spots.

Engine Won’t Start

Don’t jump to big fixes right away. Begin with simple steps. The engine powers the whole LHD. Small problems can stop it from running.

Fuel Issues

Fuel troubles cause many start failures. Dirty filters or air bubbles in the lines block the flow. Use clean diesel always. Change filters when due. Bad fuel hurts injectors. That leads to weak burning.

Battery Problems

If the engine won’t turn over at all, look at the battery voltage first. Underground spots often wet electrical parts. They shake a lot too. This speeds up rust on connections. A tired battery or dirty link can seem like a bigger trouble. Clean terminals often. Make sure links stay tight. This stops extra lost time.

Starter Motor

You hear a click but no spin? That points to a bad starter motor. Or not enough power reaches it. Check for power loss from battery to starter solenoid. On the WJ-2, automatic alarms watch oil pressure and heat. Any odd power use might set off warnings. This happens before full breakdown.

Hydraulic System Problems

The hydraulic setup runs lifting, dumping, and turning. These are key jobs for any LHD. When work slows, figure out if it’s about the liquid or parts. That cuts repair time.

Low Hydraulic Fluid

Not enough liquid lowers pressure. It makes actions slow. The DALI WJ-2 has a 200L hydraulic tank. Its dump/hoist system runs at 14Mpa. If the bucket moves lazy or pumps make noise, check the liquid right away. Low levels let air in the lines. This causes bumpy moves.

Hydraulic Leaks

Leaks happen near seal rings or hose joins. Wear or loose fits cause them. The WJ-2 uses double acting chrome-plated stems on cylinders. They fight rust well. Seals last longer too. But check them regular, especially in rough mine spots full of grit.

Slow or Jerky Movements

Air in the lines or dirt in the oil makes moves uneven. This affects lifting or turning. After fixes, let air out of the system. That brings back even work. Also, make sure filters stay open.

Transmission Issues

Transmission faults often cut work time underground. Good gear links let it haul steady with weight.

Slipping Gears

Gears slip from low transmission fluid pressure. Or old clutch parts. Do a transmission fluid check if gears feel wobbly when speeding up. The DALI WJ-2 pairs a DANA RT32000 transmission with a C272 torque converter. These strong parts work well. But they need clean oil and right pressure.

Difficulty Shifting Gears

Shifting feels hard or late? Look at the link setup. Check hydraulic pressures to the transmission valve body too. Underground heat swings make oil thick. Warm it up before use. That keeps gear shifting steady.

Electrical Problems

New LHDs use electronics a lot for watching and safety buzzers. Small electrical issues can lead to many alerts.

Blown Fuses

A bad fuse can stop lights, buzzers, or start wires. Swap in fuses with right sizes. Bigger ones might hurt wires in power jumps.

Faulty Wiring

Shakes from bumpy ground loosen plugs over time. Check wire bundles near moving spots like joint bends. They flex most there. The WJ-2’s auto alarm spots electrical faults soon. It watches power changes in lines. This helps avoid quiet breakdowns deep down.

Brake Problems

Brakes must work right in tight mine paths. Slopes change quick there.

Weak Brakes

Less brake power comes from low hydraulic push in brake lines. Or worn plates. The DALI WJ-2 uses Spring Applied Hydraulically Released (SAHR) brakes. They have closed wet disc sets at each wheel. This keeps brakes strong in dust and wet. Dry setups would wear fast in those spots.

Brake Noise

Squeaks or grinds mean dirt inside brake boxes. Or discs wear uneven. SAHR brakes seal tight. So noise points to inside wear, not outside junk. Check soon. That stops more harm to rotors and pads.

DALI is a professional manufacturer that supplies underground mining trucks, LHD loaders, and all-purpose vehicles for tough spots around the world. Its Diesel LHD WJ-2 shines for its small build. It also shows careful design. From the DEUTZ powertrain to the advanced SAHR braking system, all parts meet rules like JB/T5500 and GB25518 Safety Requirements. For workers who want less lost time and more output in skinny mine veins, picking gear with this care makes every fix effort pay off.

FAQs

Q1: What should I check first if my underground loader won’t start?

Start by verifying fuel supply and battery condition before inspecting electrical connections or starter motor function.

Q2: How do I detect hydraulic leaks quickly?

Look for wet spots around hoses and cylinder joints while operating at low speed; leaks often appear under load pressure.

Q3: Why does my loader shift gears roughly?

Cold oil viscosity or low transmission fluid levels commonly cause harsh gear changes; warming up helps stabilize flow rates.

Q4: What causes jerky bucket movements?

Air trapped in hydraulic lines or contaminated oil leads to inconsistent cylinder response—bleed lines thoroughly after repairs.

Q5: How do I maintain strong braking performance underground?

Regularly inspect brake fluid levels and ensure SAHR systems maintain proper hydraulic release pressure even after prolonged use.
