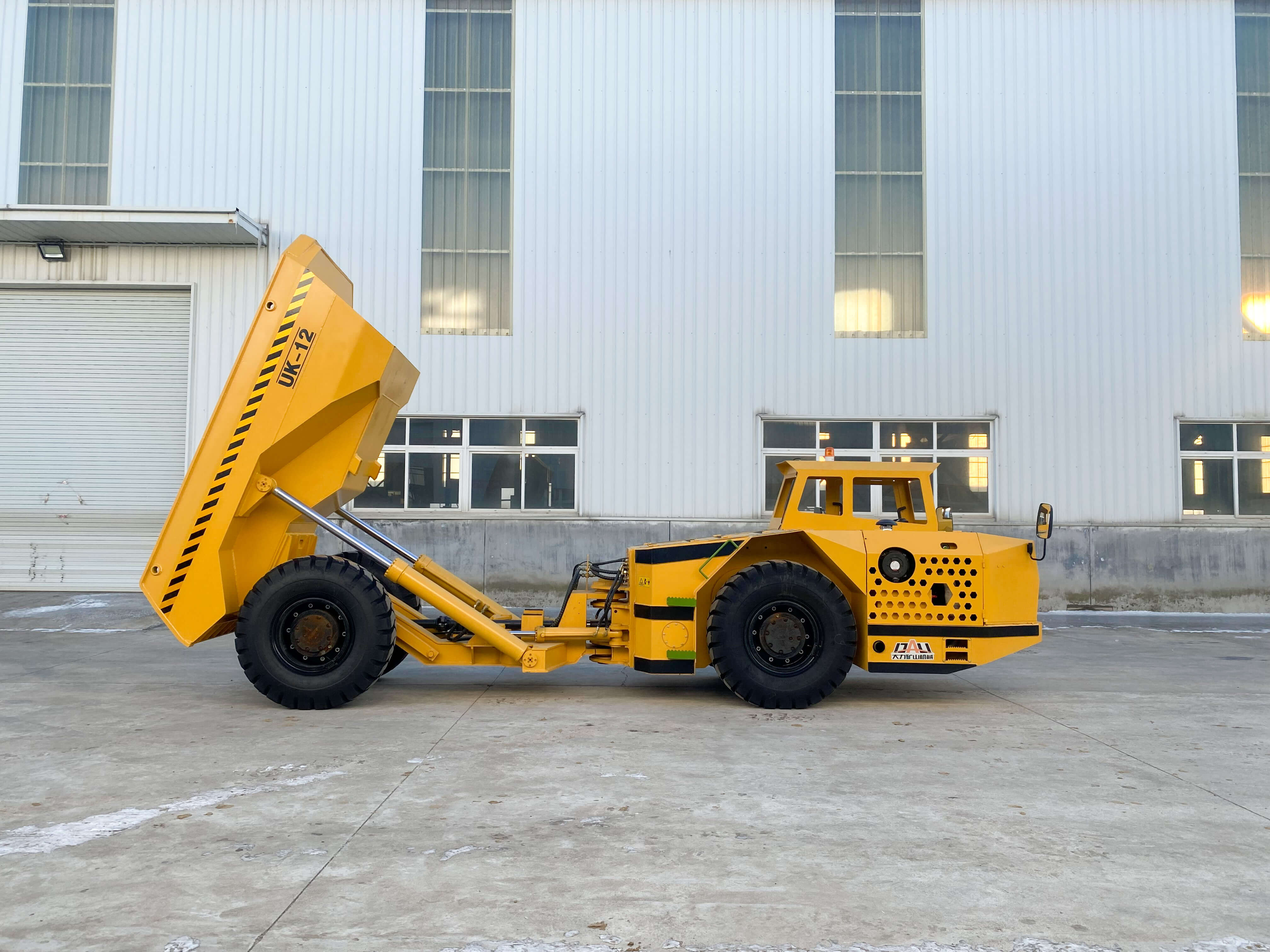

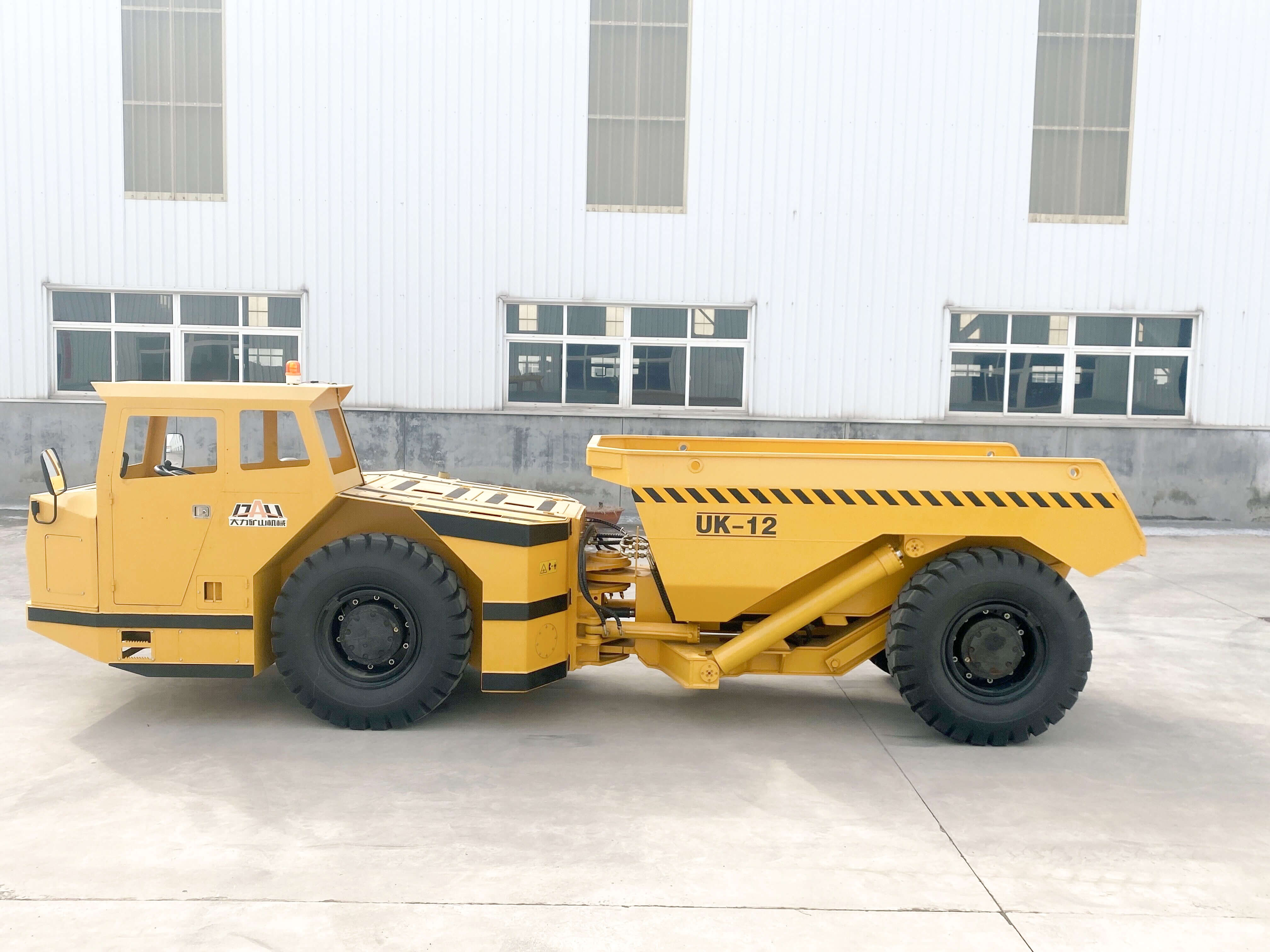

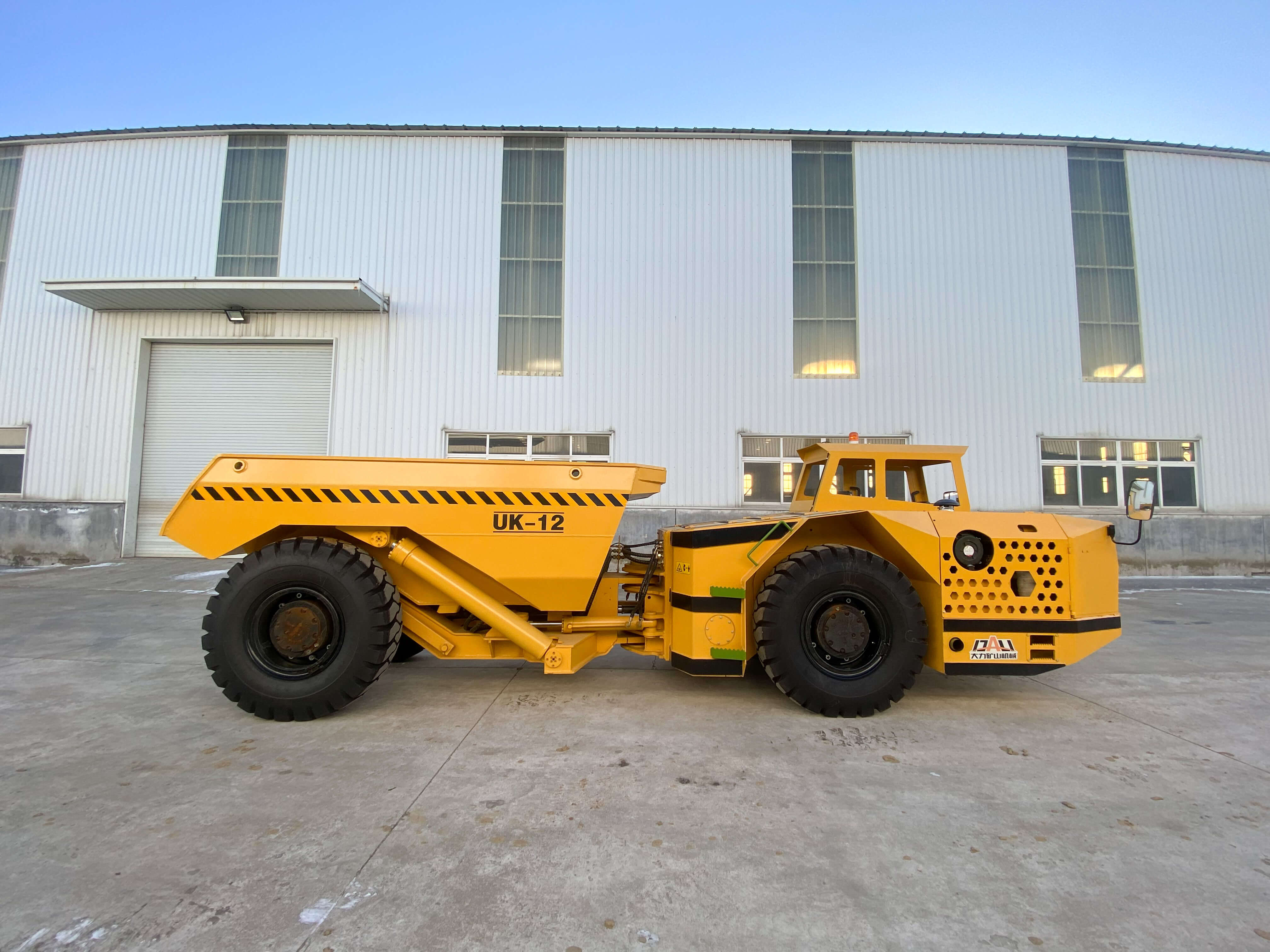

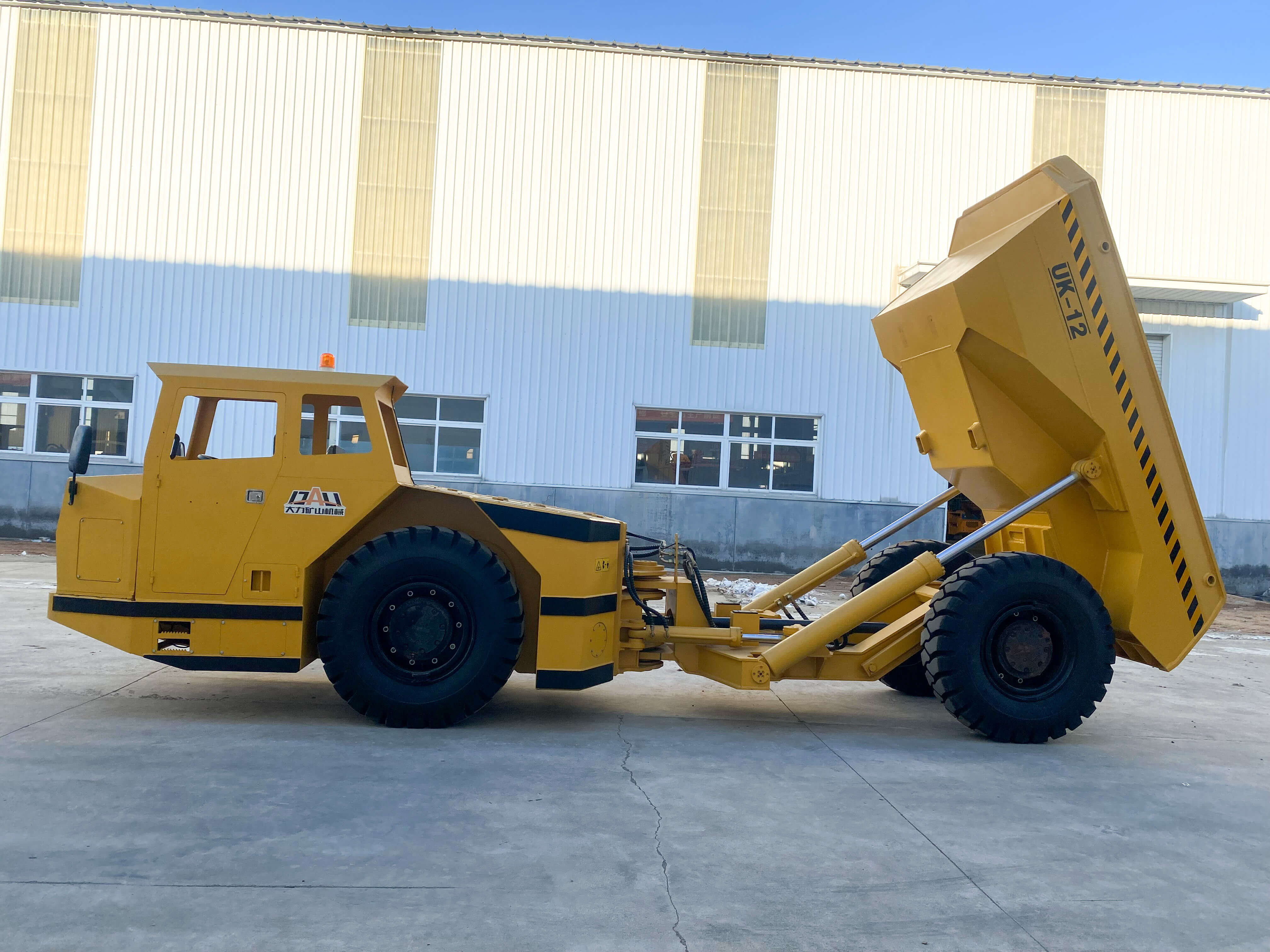

The DALI UK-12 is a 12-ton articulated underground mining truck for ore and waste haulage in small mine roadways. Its published configuration combines a 6 m3 dump body, 115 kW Deutz engine, DANA powershift drivetrain and 23 km/h maximum speed, offering more payload than UK-10 within a closely related equipment class.
|
Selection Item |
Published Value |
|
Rated payload |
12,000 kg |
|
Dump-body volume |
6 m3; webpage labels the field “Bucket” |
|
Empty weight |
11,070 kg |
|
Maximum traction |
143 kN |
|
Maximum speed |
23 km/h |
|
Engine |
Deutz BF4M1013EC, 115 kW at 2,300 rpm |
Chat With Us
Leave Message
UK-12 is aimed at mines that want two additional tonnes per trip over UK-10 without moving immediately to a 15-ton truck class. It transfers broken ore or development waste from an LHD loading point to an ore pass, crusher, stockpile or portal.
The current UK-12 and UK-10 pages publish the same empty weight, powertrain, traction and turning radii. Engineering should confirm whether they share a chassis or whether one page contains copied values. No matching UK-12 PDF was found.
At full nominal volume, payload density is 2 t/m3. Denser material may reach 12,000 kg before the body is full, so loading control should be based on tonnes rather than visual fill.
A 4-ton LHD may provide a practical three-pass match, while smaller loaders require more cycles. Confirm actual tonnes per bucket, fill factor and spillage allowance before selecting the fleet combination.
The page lists 4,700 / 7,400 mm inner/outer turning radii, 320 mm ground clearance and +/-8-degree oscillation. Overall dimensions are missing, so a complete route approval is not yet possible.
Published components include a water-cooled turbocharged Deutz BF4M1013EC engine, DANA C270 torque converter and DANA RT32000 powershift transmission.
Maximum speed is 23 km/h, traction 143 kN and gradeability 20 degrees as published. The page also describes spring-applied, hydraulically released braking; continuous ramp capability and complete brake architecture need confirmation.
|
Parameter |
Published Value |
|
Rated payload / body volume |
12,000 kg / 6 m3 |
|
Empty weight |
11,070 kg |
|
Unloading height |
4,280 mm; definition requires confirmation |
|
Ground clearance |
320 mm |
|
Turning radius, inner / outer |
4,700 / 7,400 mm |
|
Speed / traction |
23 km/h / 143 kN |
|
Gradeability / oscillation |
20 / +/-8 degrees |
|
Engine |
Deutz BF4M1013EC, 115 kW at 2,300 rpm |
|
Converter / transmission |
DANA C270 / RT32000 |
|
Hydraulics |
Duplex gear pump; Parker multiway valve |
The published payload increases from 10,000 to 12,000 kg and body volume from 5 to 6 m3. Most other page values are identical and must be verified before making a chassis-level comparison.
The page does not publish overall length, width or height. Send the route drawing and request a certified machine dimension drawing before approval.
The page says it is available. Confirm option status, controlled functions, emergency stops and fail-safe behavior.
Provide roadway geometry, gradient, haul distance, density, loader model, target output, dumping interface, ventilation data and destination country.
