[Introduction] Hammer crusher can be divided into two types: single rotor (single axis) and double rotor (double axis). Single rotor can be divided into irreversible and reversible. It can be divided into single-row and multi-row depending on the number of hammer rows.
[Productivity] 5-150 m3/h
[Application] Hammer crusher is widely used in building materials, mines, energy, transportation, energy, chemical industry and other industries for medium and fine crushing materials. its discharge size can be adjusted, and the crushing size are diversified.
[Improvement] Hammer crusher can be used for dry and wet crushing.
Chat With Us
Leave Message
Advantages
Structure

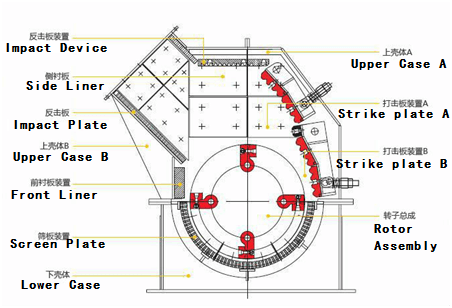

Hammer crusher is mainly composed of rotor assembly, slug, shell, counterattack frame and drive parts. It mainly relies on the hammerhead of the crusher to strike the ore strongly in the upper chamber.
The impact of the ore on the counterattack frame and the collision between the ores break the ore. The raw ore is fed into the crusher’s inlet through feeding equipment (such as plate feeder), and then the ore falls into the crushing chamber between the high-speed rotating rotor driven by narrow V-band and the counterattack frame, which is preliminarily crushed by the hammerhead.
After preliminary crushing, the ore is further crushed between the rotor and the impact rack during downward movement, and then the lower crushing chamber formed by the slug and the rotor is finally crushed until the size of particles smaller than the slug slot is discharged from the lower part of the chamber.
Technical Parameter
|
Model |
Feeding Size mm |
Outlet mm |
Capacity m³/h |
Motor Power kw |
Weight t |
Dimension mm |
|
PC400×300 |
≤200 |
≤25 |
5~10 |
11 |
0.8 |
900×670×860 |
|
PC600×400 |
≤250 |
≤30 |
10~22 |
22 |
2.26 |
1200×1050×1200 |
|
PC800×600 |
≤250 |
≤35 |
18-40 |
55 |
4.8 |
1310×1180×1310 |
|
PC1000×800 |
≤350 |
≤35 |
25-50 |
75 |
5.9 |
1600×1390×1575 |
|
PC1000×1000 |
≤350 |
≤35 |
30-55 |
90 |
8 |
1800×1590×1775 |
|
PC1200×1200 |
≤350 |
≤35 |
50-80 |
132-160 |
19.2 |
2060×1600×1890 |
|
PC1400×1400 |
≤350 |
≤35 |
50-100 |
280 |
32 |
2365×1870×2220 |
|
PC1600×1600 |
≤350 |
≤35 |
100-150 |
480 |
37.5 |
3050×2850×2800 |
