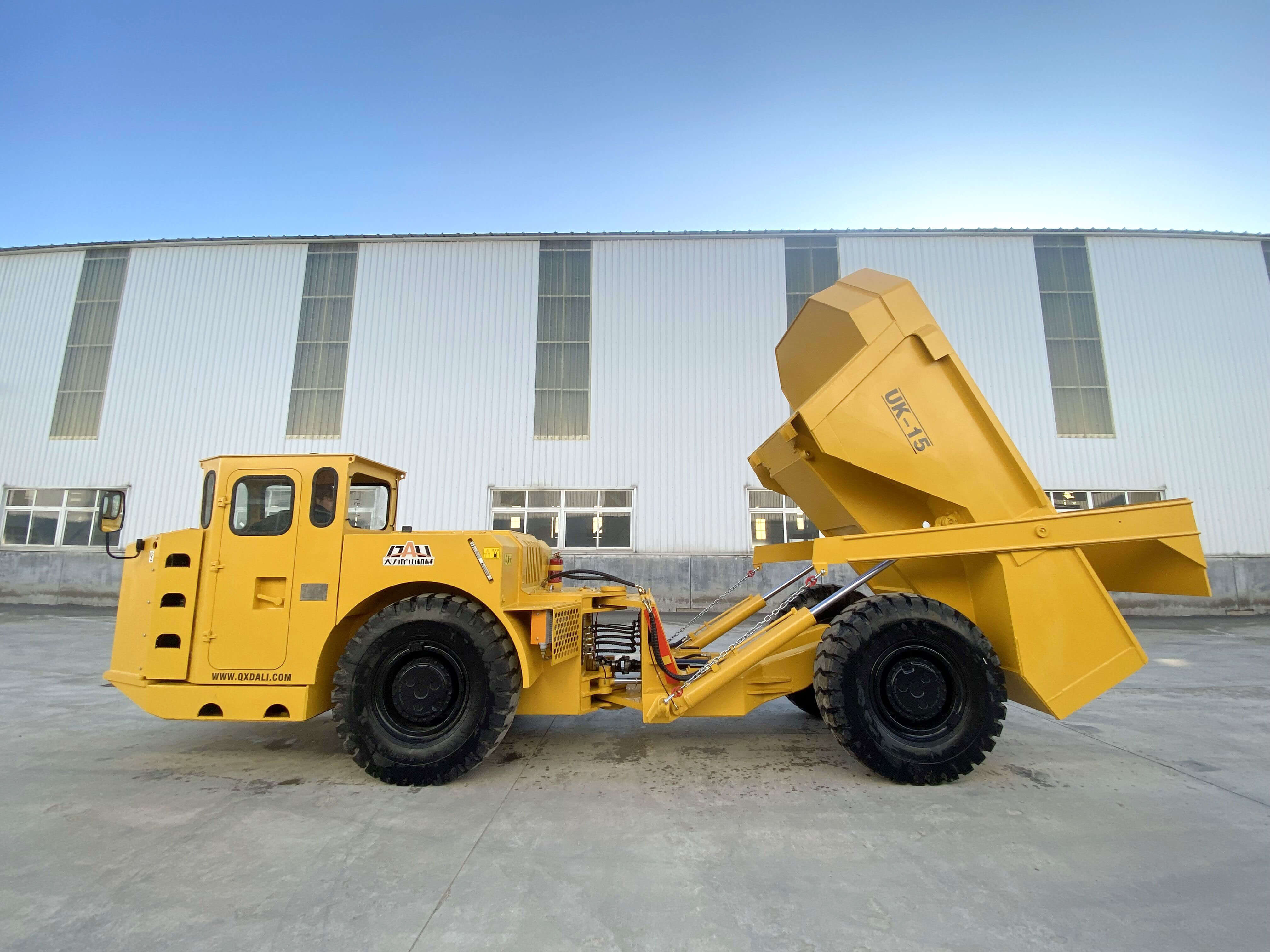

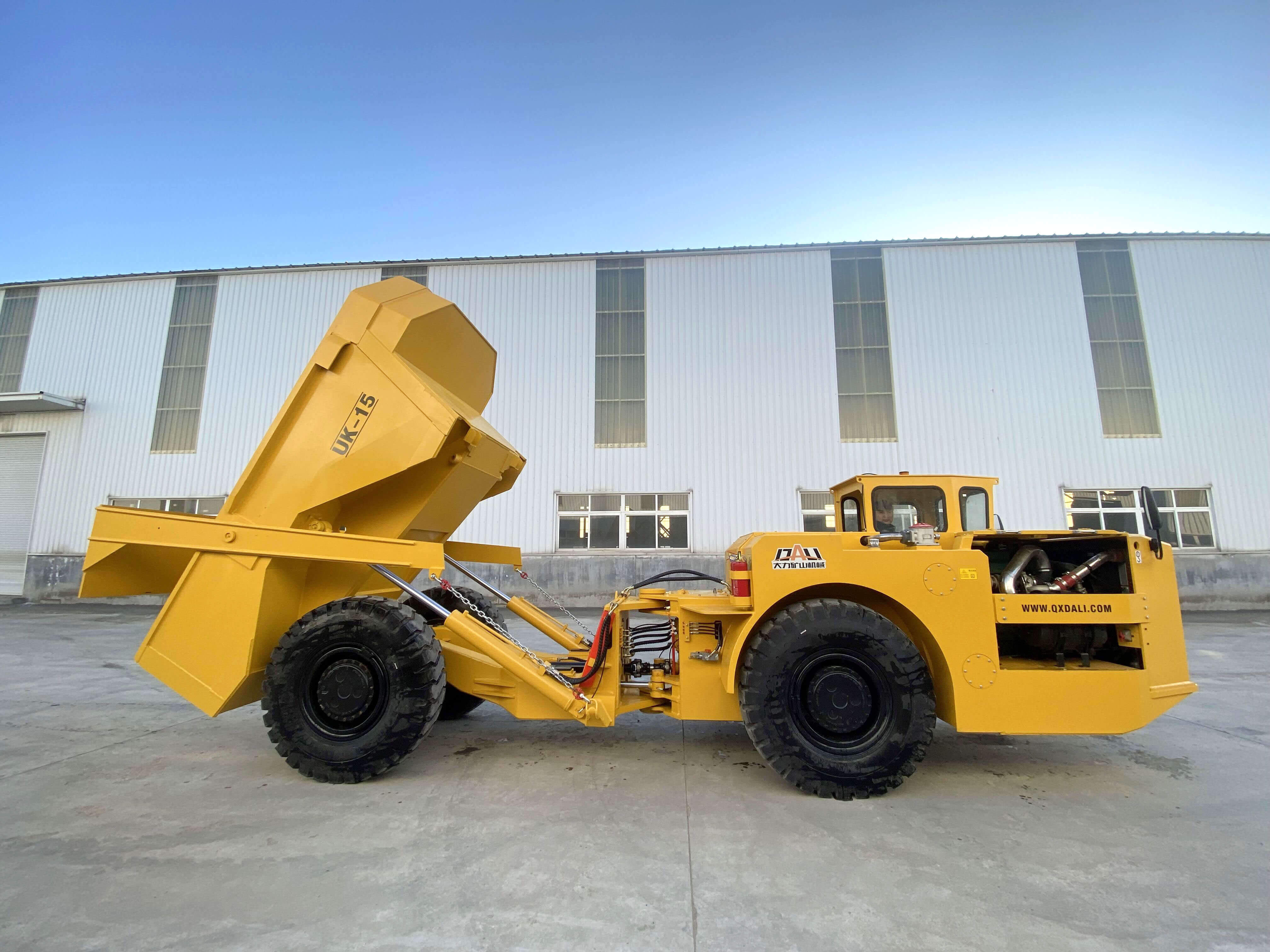

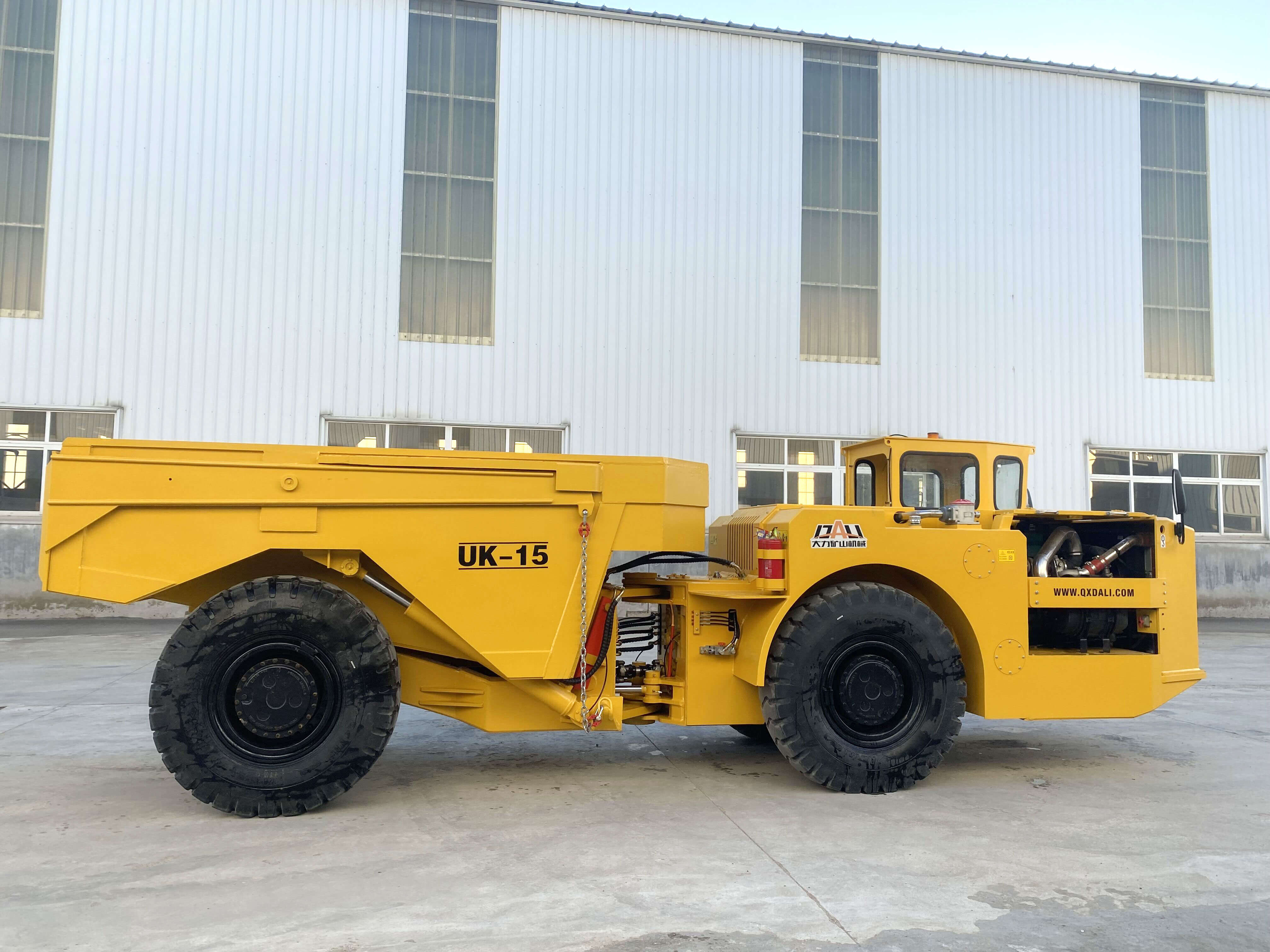

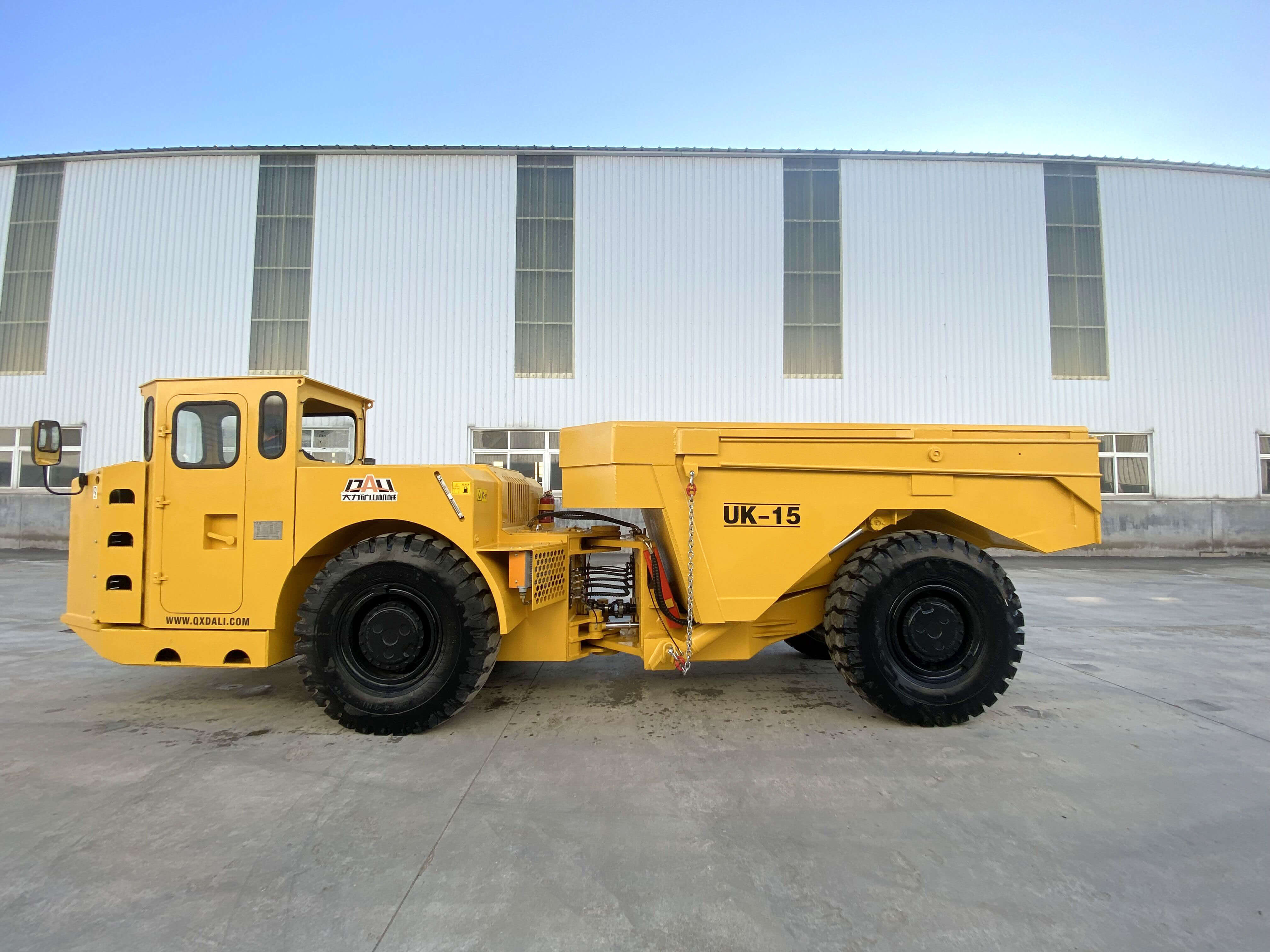

The DALI UK-15 is a 15-ton articulated underground mining truck for small- to medium-scale haulage. The matching brochure lists a 7.5 m3 dump body, 2.21 m width, 160 kW Volvo engine and four-speed DANA drivetrain, positioning it as a step up from compact UK-10/12 trucks without entering the 20-ton class.
|
Selection Item |
Reference Specification |
|
Rated payload |
15,000 kg |
|
Dump-body volume |
7.5 m3 |
|
Overall dimensions |
7,940 x 2,210 x 2,370 mm |
|
Empty / loaded weight |
15,500 / 30,500 kg |
|
Engine |
Volvo, 160 kW |
|
Maximum reference speed |
23.5 km/h |
Chat With Us
Leave Message
UK-15 is sized for mines where a 15-ton payload provides a better loader-pass match and fewer trips than a 10- or 12-ton truck, while roadway restrictions discourage a 20-ton unit. Its 2.21 m reference width and articulated chassis are key inputs for route approval.
This draft uses the matching UK-15 brochure as its technical baseline. The live webpage describes a different Deutz/DANA configuration and different weight and turning data; those conflicts must be resolved before publication.
The body-to-payload relationship equals 2 t/m3 at nominal volume. Confirm loose density and fill factor so material weight, not body fullness, controls loading.
A 6-ton LHD may provide approximately three practical passes, while smaller loaders require more. Use actual bucket tonnes and truck loading geometry rather than nominal volumes alone.
The brochure lists 7,940 x 2,210 x 2,370 mm overall dimensions, 4,225 mm wheelbase and 340 mm ground clearance. Check corner sweep, passing bays and 4,520 mm raised-body height.
The brochure lists a 160 kW Volvo engine, DANA C273 converter, DANA R32000 transmission and Kessler D81 axles. The current webpage instead lists Deutz and other components.
Fully loaded weight is 30,500 kg in the brochure. Floor condition, ramp grade, braking, tire heat and road maintenance should be assessed for the complete cycle.
|
Parameter |
Reference Specification |
|
Payload / dump body |
15,000 kg / 7.5 m3 |
|
Overall dimensions |
7,940 x 2,210 x 2,370 mm |
|
Wheelbase / ground clearance |
4,225 / 340 mm |
|
Raised body height / dump angle |
4,520 mm / 65 degrees |
|
Turning radius / angle |
4,250 / 7,100 mm / 42 degrees |
|
Speed ranges |
4.5 / 9.8 / 17.8 / 23.5 km/h |
|
Empty / loaded weight |
15,500 / 30,500 kg |
|
Engine |
Volvo, 160 kW |
|
Converter / transmission |
DANA C273 / R32000 |
|
Axles / tires |
Kessler D81 / 14.00-24 L-5S TT |
UK-15 adds 3,000 kg payload and provides a documented 2.21 m-wide reference envelope. Choose it when the route and loader can use the extra capacity efficiently.
The brochure lists a 160 kW Volvo engine; the webpage lists a 165 kW Deutz BF6M1013EC. The current production configuration must be confirmed in writing.
The brochure lists braking, articulation lock, body support, rear camera, reverse alarm and other items. Verify standard/optional status and obtain model-level protective-structure evidence.
Send route drawings, gradient, distance, density, loader model, dumping point, ventilation limits, production target and destination.
