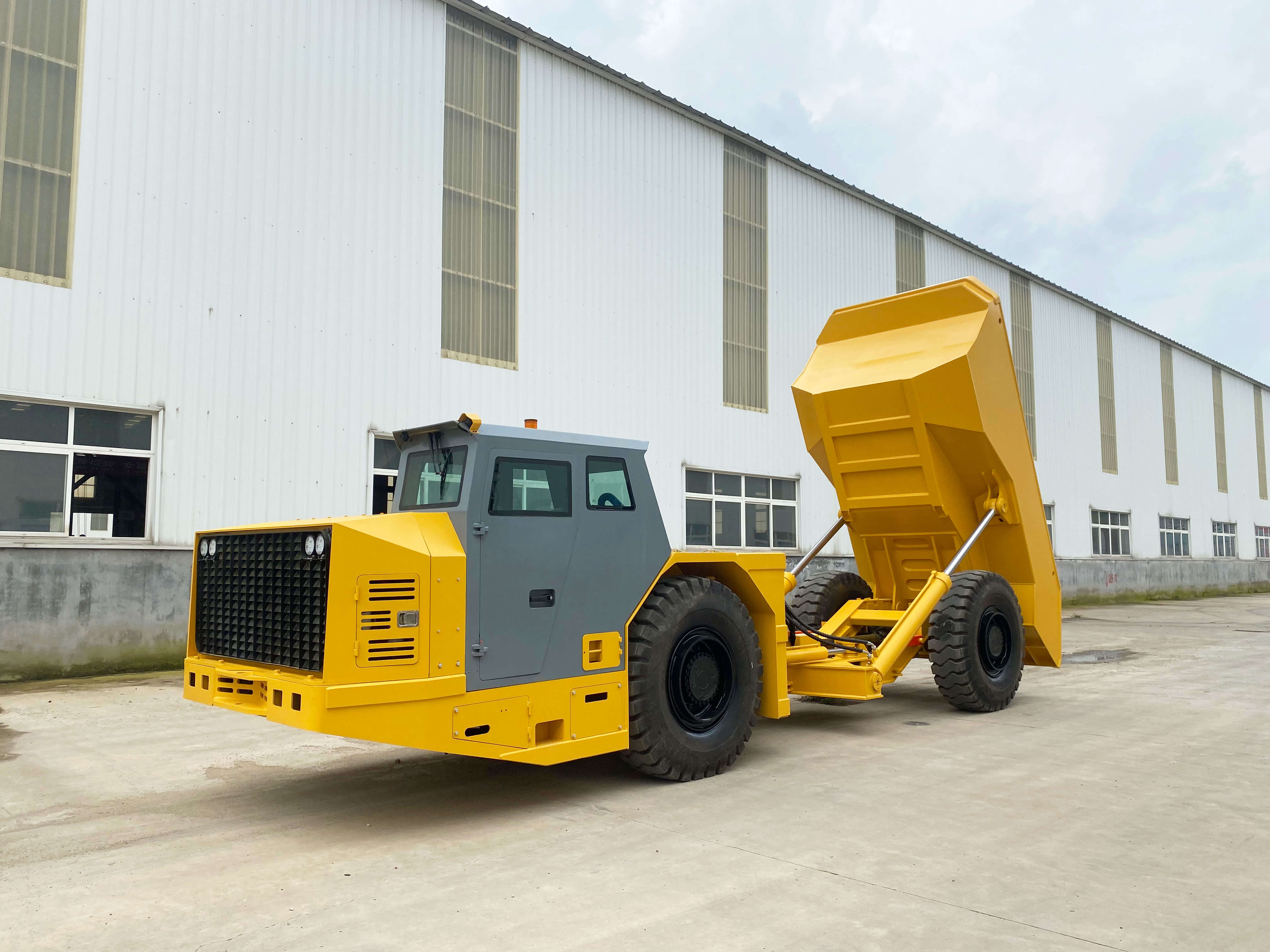

20T Underground Truck

20T Underground Truck

UK-20 is mainly used in underground mines with a loading capacity of 20 tons. The frames are articulated in the center with 42° steering angle, the turning radius is small. (Remote control available)

DEUTZ BF6M1013FC Power system, water-cooled, and turbocharged engine.

DANA Transmission system, hydraulic torque converter, and power-shift gearbox, which is easy to operate and stable to operate.

Spring brake and hydraulic release in the brake system, which is safe and reliable.

Canadian ECS platinum catalytic purifier with a silencer, which greatly reduces the air and noise pollution in the working tunnel.

The new design model not only improves productivity and underground tunnel transportation but also have very high safety, serviceability and comfortability.

Chat With Us Leave Message

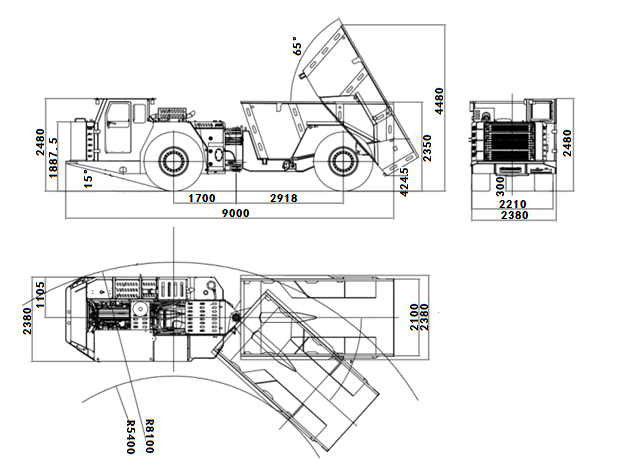

Main Technical Parameters

Bucket

10m3



Capacity

20000kg

Unloading Height

4496mm

Min. Ground Clearance

371mm

Oscilation Angle

±10°

Turning Radius

5200 / 8200

Speed

0-30km/h

Climing Ability

20°

Traction

220KN

Weight

19500kg

Main Configuration

Engine:Deutz BF6M1013FC / 223kw / 2300rpm

Torque Converter:DANA C5000

Transmission:DANA RT36000

Axle:DANA 19D, Rigid Planetary Drive Axle

Hydraulic Pump:Duplex Gear Pump

Multiway Valve:USA PARKER
