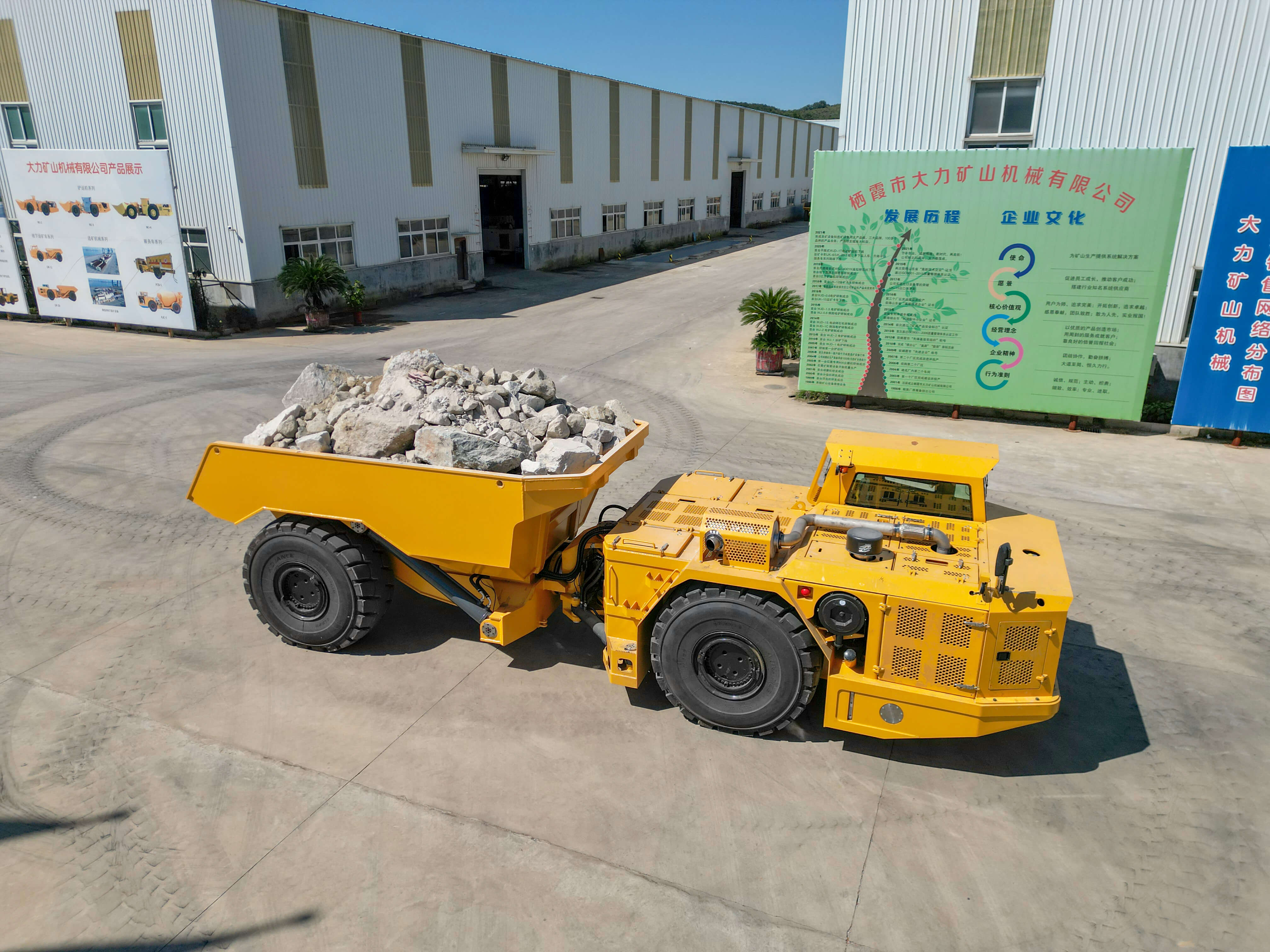

The DALI UK-40 is a 40-ton underground mining truck for high-volume production haulage. Its current webpage lists a 20 m3 dump body, 405 kW Volvo engine, 404 kN traction and 36.8-ton empty weight. Selection depends on loader pass count, roadway envelope, loaded mass, ventilation and sustained ramp duty.
|
Selection Item |
Published Value |
|
Rated payload |
40,000 kg |
|
Dump-body volume |
20 m3; webpage labels the field “Bucket” |
|
Empty weight |
36,800 kg |
|
Maximum traction |
404 kN |
|
Maximum speed |
35.2 km/h |
|
Engine |
Volvo TAD1650VE, 405 kW at 1,900 rpm |
Chat With Us
Leave Message
UK-40 sits between the 30-ton production truck and the larger UK-45. It is intended for mines where fewer, heavier trips improve the haul cycle and where roadways, floors, ventilation and workshops can support the larger equipment class.
No matching UK-40 PDF was found. The page also omits overall dimensions, wheelbase, turning radius and loaded weight, so fleet approval must wait for a complete dimensioned specification.
The nominal relationship is 2 t/m3. Actual loading must be controlled by material mass, fragmentation and bucket fill rather than visual body volume.
Calculate practical bucket tonnes, spotting time and passes per truck. A larger truck will not improve output if loading time or dump-point queueing becomes the bottleneck.
The page lists a Volvo TAD1650VE with 2,757 Nm maximum torque, DANA CL8000 converter, DANA 8000 transmission and DANA 53R300 axles.
Published traction is 404 kN, speed 35.2 km/h and gradeability 20 degrees. Sustainable ramp performance requires loaded weight, brake heat, road resistance and speed limits to be modeled.
The page lists four-wheel SAHR braking, rear camera, hydraulic pilot steering, cab-door transmission interlock and an enclosed air-conditioned cab. Confirm standard equipment and evidence in the offer.
|
Parameter |
Published Value |
|
Payload / body |
40,000 kg / 20 m3 |
|
Empty weight |
36,800 kg |
|
Raised-body or unloading height |
5,923 mm; confirm definition |
|
Ground clearance / oscillation |
397 mm / +/-10 degrees |
|
Speed / traction |
35.2 km/h / 404 kN |
|
Gradeability |
20 degrees |
|
Engine |
Volvo TAD1650VE, 405 kW at 1,900 rpm |
|
Converter / transmission |
DANA CL8000 / 8000 |
|
Axles / tires |
DANA 53R300 / Techking 29.5R25 ETNT |
UK-45 adds 5,000 kg payload and 2 m3 body volume. UK-40 may be preferable where the extra UK-45 width, weight or infrastructure demand is not justified, but UK-40 dimensions must first be supplied.
Choose from actual tonnes per bucket and desired passes. Send the LHD model, material density and loading layout for review.
Overall dimensions, wheelbase, turning radii, loaded weight, axle loads and complete raised-body geometry are not published.
Provide route drawings, gradient, distance, loader data, density, dumping interface, production target, ventilation and workshop limits.
