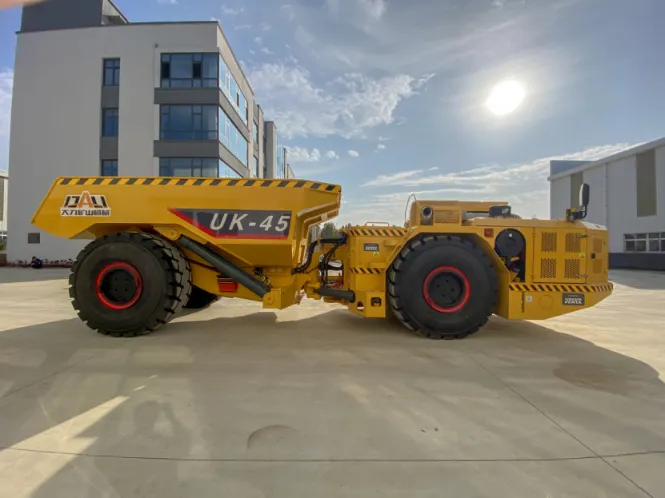

DALI UK-45 underground truck features the powerful water cooled & turbo charge Volvo diesel engine(450kW) offering high efficiency in underground operations.
Structural Design
A1. The front and rear frames are articulated with good performance and easy operation.
A2. Ergonomics Canopy with comfortable operation. Spring seat with belt. View of 360°.
A3. Fully closed cab with air conditioning.
Operation Safety
B1. 4 wheels driving and braking.
B2. The combination design of parking brake, working brake and emergency brake has good braking effect and high safety factor. Braking model is SAHR(spring applied, hydraulic release).
B3. Rear camera to provide good view for the operator.
B4. Full hydraulic steering system, easy and flexible operation. Hydraulic pilot control to reduce the labor intensity of the driver.
B5. Inductive switch is equipped at the door of cab, when the door is open, the transmission will be locked to keep the vehicle safe.
Early warning and maintenance
C1. Automatic alarm system for oil temperature, oil pressure and electrical system.
C2. Auto lubrication system.
Optional
Remote-control.
Fire suppression system.
Chat With Us
Leave Message
Technical Specification

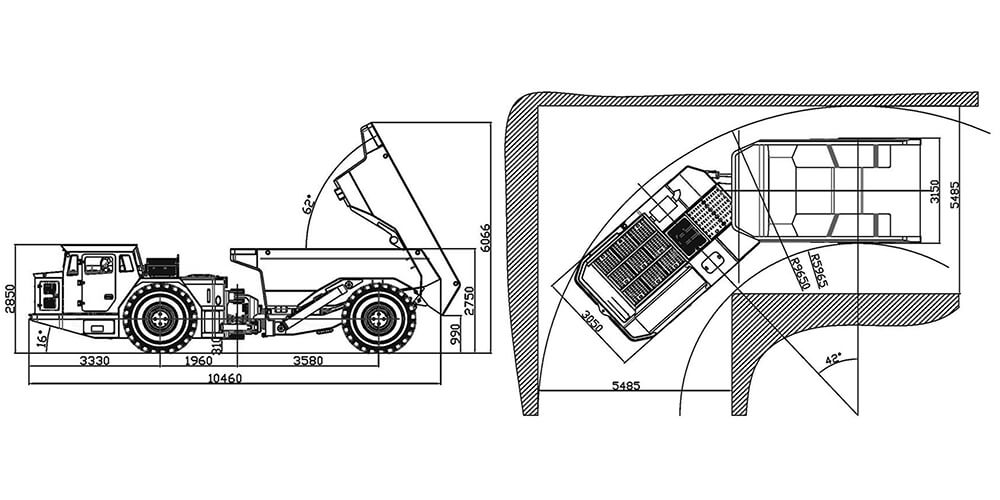

| Overall Size |
10460×3150×2850 mm |
Min. Ground Clearance |
310 mm |
|
Max Lift Height |
6066 mm |
Wheelbase |
5540 mm |
|
Turning Angle |
42° |
||
|
Standard Bucket |
22m3 |
Payload |
45000kg |
|
Max Traction |
404KN |
Clime Ability(Laden) |
25% |
Engine
|
Model |
Volvo TAD1651VE |
Type |
water cooled & Turbo charge |
|
Power |
450kw / 1900rpm |
Max torque |
2897Nm@1260rpm |
|
Cylinder |
6 in line |
Displacement |
16.1L |
|
Emission |
EURO III / Tier 3 |
Fuel Tank |
700L |
|
Air Filter |
Two stage / dry type |
Purifier |
Catalytic & silencer |
Torque Converter
|
Brand |
DALI |
Model |
CL8000 |
Transmission
|
Brand |
DALI |
Model |
8000 |
Axle
|
Brand |
DANA |
Model |
53R300 |
Wheel & Tire
|
Brand |
ADVANCE |
Tire |
29.5R25 ETNT |
Canopy
Floor washable with water to reduce dust
Low frequency suspension seat
Dashboard & Displays
Critical warnings and alarms Displayed as warning lights
Instrument Panel Electric gauges
Instrument Panel Illuminated switches
Frame
High strength welded steel structure with optimized material thicknesses
Tanks Bolted & Welded
Hydraulic
Rexroth Filling pump for hydraulic oil
PARKER multi way valve
Rexroth hydraulic triplex pump(Gear Type) for working & steering
Hydraulic Joystick(Pilot) control for working & steering with PARKER valve.
Oil cooler for hydraulic oil
250L working hydraulic oil tank
Meter oil level
Hydraulically operated, center-point articulation, power steering with two double acting cylinders.
The oil flow from steering hydraulic pump is directed to bucket hydraulics when steering is not used. which can enlarge the working pressure.
Two dump cylinders.
8μm LEEMIN Filter
Braking
SAHR multi-disc wet brake at each wheel. Combination design of parking, working & emergency brake.
100L braking oil tank.
Electrical
Alternator 150A / 28V
Batteries 2 x 12V 155Ah
Starter 7.5kW / 24 V
Driving lights：4 pcs in front 42W / LED, 2 in rear 24W / LED, 2 in the cab 24w / LED
