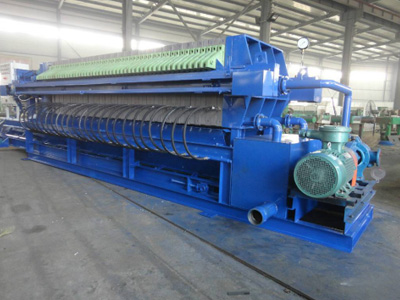

[Introduction] An intermittent pressurized filtration equipment is suitable for solid-liquid separation of various suspensions. It has wide application range, good separation effect, simple structure, convenient operation, safety and reliability. It is widely used in coal washing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, alcohol and other fields. It is also suitable for textile, printing and dyeing, pharmaceutical, paper-making, leather, monosodium glutamate and other industries. Wastewater and municipal domestic sewage treatment and other fields need solid-liquid separation.
[Filtration area] 20-1180m2
[Application] It is widely used in coal washing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, alcohol and other fields. It is also applicable to textile, printing and dyeing, pharmaceutical, paper making, leather, monosodium glutamate and other industrial wastewater and municipal domestic sewage treatment fields which need solid-liquid separation.
[Improvement] Plastic steel filter plate precision casting, high temperature, high pressure, durable. Programmable control, automatic operation.
Chat With Us
Leave Message
The way of filtrate outflow is clear flow filtration and dark flow filtration. Open-flow filtration: The outlet hole under each filter plate is equipped with a water nozzle, and the filtrate flows directly from the water nozzle. Underflow filtration: There are outlet holes under each filter plate. The outlet holes of several filter plates are connected to form an outlet channel, which is discharged by the pipeline connected with the outlet holes under the thrust plate. Washing method: When the cake needs washing, there are one-way washing and two-way washing, dark current one-way washing and two-way washing.
|
Model |
Area m2 |
Filtration Chamber |
Filter Plate mm |
Product Thickness mm |
Filtration Chamber Volume m3 |
Filtration Pressure Mpa |
Power kw |
|
XZ20-800U |
20 |
20 |
800×800×60 |
30 |
0.287 |
0.5~1.6 |
2.2 |
|
XZ40/800U |
40 |
40 |
0.605 |
||||
|
XZ60/800U |
60 |
60 |
0.907 |
||||
|
XZ80/800U |
80 |
80 |
1.21 |
||||
|
XZ40/900U |
40 |
32 |
900×900×60 |
30 |
0.59 |
0.5~1.6 |
2.2 |
|
XZ50/900U |
50 |
40 |
0.75 |
||||
|
XZ70/900U |
70 |
63 |
1.19 |
||||
|
XZ60/1000U |
60 |
38 |
1000×1000×60 |
30 |
0.9 |
0.5~1.6 |
2.2 |
|
XZ80/1000U |
80 |
50 |
1.19 |
||||
|
XZ100/1000U |
100 |
62 |
1.48 |
||||
|
XZ120/1000U |
120 |
75 |
1.8 |
||||
|
XZ125/1250U |
120 |
46 |
1250×1250×65 |
32 |
1.9 |
0.5~1.6 |
4 |
|
XZ150/1250U |
150 |
58 |
2.41 |
||||
|
XZ180/1250U |
180 |
69 |
2.88 |
||||
|
XZ200/1250U |
200 |
77 |
3.22 |
||||
|
XZ220/1250U |
220 |
84 |
3.51 |
||||
|
XZ250/1250U |
250 |
95 |
3.98 |
||||
|
XZ300/1500U |
300 |
77 |
1500×1500×70 |
32 |
4.76 |
0.5~1.6 |
5.5 |
|
XZ320/1500U |
320 |
83 |
5.14 |
||||
|
XZ340/1500U |
340 |
88 |
5.45 |
||||
|
XZ350/1500U |
350 |
90 |
5.58 |
||||
|
XZ380/1500U |
380 |
98 |
6.08 |
||||
|
XZ400/1500U |
400 |
103 |
6.39 |
||||
|
XZ450/1500U |
450 |
116 |
7.21 |
||||
|
XZ500/1500U |
500 |
128 |
7.96 |
||||
|
XZ560/2000U |
560 |
80 |
2000×2000×83 |
40 |
11.16 |
0.5~1.6 |
11 |
|
XZ600/2000U |
600 |
86 |
12.01 |
||||
|
XZ630/2000U |
630 |
90 |
12.58 |
||||
|
XZ670/2000U |
670 |
96 |
13.43 |
||||
|
XZ710/2000U |
710 |
101 |
14.13 |
||||
|
XZ750/2000U |
750 |
107 |
14.98 |
||||
|
XZ800/2000U |
800 |
114 |
15.97 |
||||
|
XZ850/2000U |
850 |
121 |
16.96 |
||||
|
XZ900/2000U |
900 |
128 |
17.95 |
||||
|
XZ950/2000U |
950 |
135 |
18.94 |
||||
|
XZ1060/2000U |
1060 |
151 |
21.2 |
||||
|
XZ1180/2000U |
1180 |
168 |
23.61 |
