Belt Conveyor

Belt Conveyor

[Introduction] General fixed or movable belt conveyor.
[Capability] 78-2995 t/h

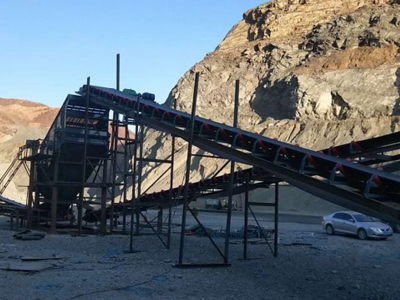

[Application] Belt conveyor has many advantages, such as large conveying capacity, simple structure, convenient maintenance, low cost and good versatility. It is widely used in mining, construction, hydraulic and chemical industries.
[Improvement] With backstop, electric drum, external motor type electric drum or motor reducer can be used and distributed according to actual working conditions.

Chat With Us Leave Message
  1. Transportation distance is long and the volume of transportation is large, so continuous transportation can be realized.
  2. It is reliable and easy to realize automation and centralized control.
  3. It has simple structure, convenient maintenance, low cost and strong versatility.

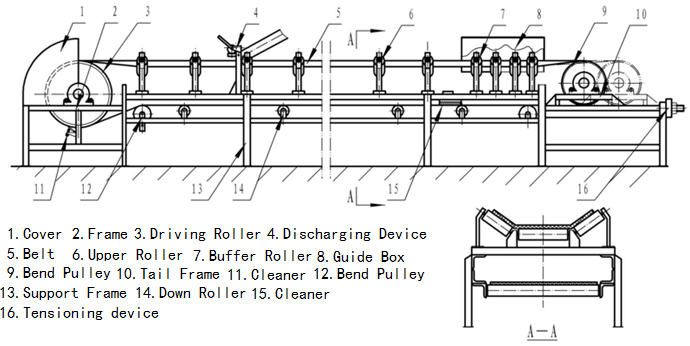

Belt conveyor is mainly composed of drum, conveyor belt and bracket. The drum that drives the conveyor belt to rotate is called the driving drum. Another drum used to change the direction of the conveyor belt movement is called the reverse drum(Bend pulley). The driving drum is driven by a motor through a reducer, and the conveyor belt is driven by the friction force between the driving drum and the conveyor belt. The driving drum is usually installed at the unloading end to increase the traction force, which is conducive to pulling the belt.

Belt Speed

m/s

Belt Width mm

500

650

800

1000

1200

1400



Capacity tph

0.8

78

131

1

97

104

278

435

655

891

1.25

122

206

318

544

819

1115

1.6

156

264

445

696

1048

1427

2

191

323

546

853

1284

1748

2.5

232

391

551

1033

1556

2118

3.15



824

1233

1858

2528

4



2202

2995
