Chemical Reagent Agitation Tank

Chemical Reagent Agitation Tank

[Introduction] Mine agitation tank for chemical reagent preparation
[Volume] 0.094-14.8m3
[Application] Chemical reagent agitation tank is used for preparation work of various chemical before flotation.
[Improvement] The cylinder body is lined with anti-wear and anti-corrosion rubber, which can effectively protect the corrosiveness of agents, and has strong mixing ability of liquid and chemical reagent.

Chat With Us Leave Message

1. High production efficiency and energy saving.

2. Stable operation and convenient maintenance.

3. Corrosion-resistant rubber is wrapped on the impeller of the agitation tank, which has a good protective effect on the corrosion of the agents and improves the service life of the agitation tank.

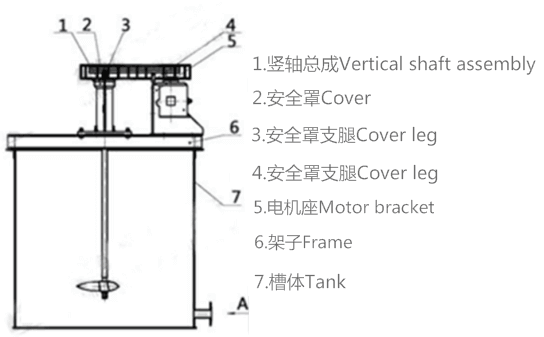

药剂搅拌槽工作原理

The stirring operation is carried out by means of flat bottom barrel, radiation circulation and screw impeller mechanical stirring. When the agitator is working, the motor pulls the triangular belt drive device to drive the impeller to rotate, and the reagent is evenly mixed under the uniform rotating speed of the impeller, thus making necessary preparations for the mixing of pulp and reagent in the next stage.

Model

Volume

Impeller

Motor

Weight

kg

Revolution

r/min

Diameter

mm

Model

Power

kw

BJW-500×500

0.074

525

240

Y802-4

0.75

142

BJW-500×600

0.094

525

240

Y802-4

0.75

210

BJW-750×750

0.25

530

240

Y100L-6

1.5

280

BJW-1000×1000

0.58

513

230

Y90L-4

1.5

420

BJW-1250×1250

1.4

401

380

Y100L1-4

2.2

973

BJW-1500×1500

2.2

320

380

Y132M1-6

4

1265

BJW- 1600×1600

2.56

332

380

Y132M2-6

5.5

1530

BJW-2000×2000

5.46

233

550

Y132M2-6

5.5

1850

BJW- 2500×2500

12.26

285

630

Y160L-6

11

2681

BJW-3000×3000

17.5

200

800

Y225S-8

18.5

4620

BJW- 3500×3500

29.5

190

800

Y225M-8

22

5380

BJW- 4000×4000

46

200

1000

Y250M-8

30

5380
