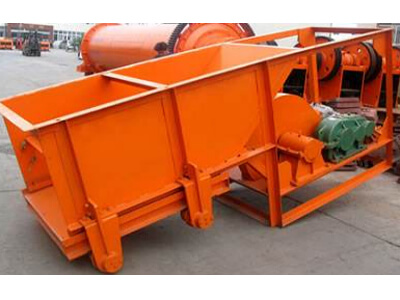

Chute Feeder

Chute Feeder

[Introduction] Feeding equipment with periodic reciprocating motion, used for continuous feeding of bulk materials.
[Capability] 10-500 m3/h
[Application] The feeder is suitable for short distance transportation of bulk materials with particle size less than 400 mm. It is widely used in mining, construction, chemical industry, cement and building materials industries.
[Improvement] According to the user’s requirements, the motor can be changed into a speed-regulating motor in order to adjust the feeding capacity.

Chat With Us Leave Message

1. It can be installed on the ground or hoisted on the discharge outlet of the ore bin.
2. Changing and controlling the ORE-FEEDING quantity at any time, easy to operate.
3. The groove bottom plate is in reciprocating motion, and the stroke can be adjusted by the eccentric wheel of the driving device.

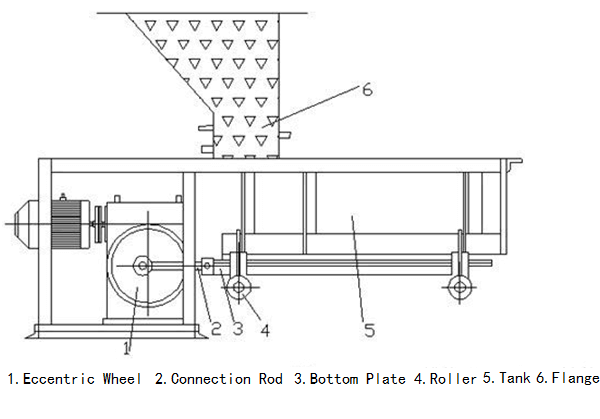

The chute feeder is generally installed under the discharge port of the bin. The ore falls into the leaky plate at the bottom of the feeder. The bottom leaky plate is set on the roller. The leaky plate is connected with the double-outlet reducer through the eccentric mechanism, and then connected with the motor through the coupling. When working, the reducer is driven by the motor through the coupling, and the eccentric disc and the leaky disc of the equipment between the bottom of the trough frame and the roller reciprocate in a straight line motion, so as to complete the uniform feeding.

Model

Discharge Outlet

mm

Max Feeding Size

mm

Feeding Capacity

m³/h

Motor

Weight

kg

Model

Power

kw

300X300

300X300

50

10-20

Y90L-4

1.5

265

400X400

400X400

100

10-30

Y112-6

2.2

535

600X500

600X500

200

10.5-25.5

Y112M-6

4

1054

700X500

700X500

250

10-60

Y112M-6

4

1100

1000X1900

1000X1900

300

300

Y160M-4

7.5

2691

1240X980

1240X980

350

40-90

Y160M-6

7.5

1710

1240X1100

1240X1100

400

61-150

Y160M-4

11

1850

1400X2000

1400X2000

300

50-101

JZT52-6

7.5

3472

2400X1200

2400X1200

350

120-150

YCT225-4B

15

3183

2300X1400

2300X1400

300

250-500

Y180M-4

18.5

6895
