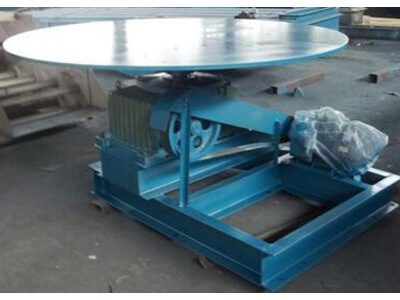

[Introduction] Feeding equipment for fine granular or powdery materials.
[Capability] 0-88 t/h
[Application] The disc feeder is suitable for feeding all kinds of non-sticky materials, but not for powder materials with good fluidity. It is widely used in mine, construction and chemical industry..
[Improvement] Speed-regulating motor can be used according to user’s requirements, and the ore feeding quantity can be adjusted by adjusting the disc speed.
Chat With Us
Leave Message
1. It has simple structure, reliable operation and convenient adjustment and installation.
2. Equipped with finite moment hydraulic coupling, it can start at full load and protect against overload.
3. Light weight, small size, reliable operation, long life, easy maintenance.
4. The advanced design of plane double enveloping toroidal mule rod reducer is adopted, which has large load-carrying capacity and high transmission efficiency.
Bulky materials entering into the cylinder from the hopper accumulate by itself weight on the disk. The natural angle of material is controlled on the disk by adjusting the gap between the sleeve and disc. When the disk rotates, the materials are scraped into accepted hopper by unloading knife, so with the continuous rotation of the disk, the materials are fed evenly. Adjust the gap between the unloading knife and the disk to control the feeding volume.
|
Model |
Disc Diameter mm |
Disc Revolution rpm |
Max Feeding Size mm |
Feeding Capacity tph |
Motor Model |
Motor Power kw |
Weight kg |
|
YG300 |
300 |
10. 0 |
20 |
0 〜1. 8 |
Y80L- 4 |
0. 55 |
115 |
|
YG400 |
400 |
10. 7 |
20 |
0 〜2. 6 |
Y80L- 4 |
0. 55 |
120 |
|
YG500 |
500 |
10.7 |
20 |
0 〜3. 3 |
Y90L- 6 |
1. 1 |
124 |
|
YG600 |
600 |
10. 0 |
20 |
0 〜5. 0 |
Y90L- 6 |
1.1 |
130 |
|
YG800 |
800 |
9 |
30 |
0 〜8. 0 |
Y80L- 4 |
0.55 |
195 |
|
YG1000 |
1000 |
9 |
30 |
0〜12 |
Y90L- 4 |
1. 5 |
263 |
|
YG1500 |
1500 |
7 |
40 |
0〜22 |
Y132M2-6 |
5. 5 |
755 |
|
YG2000 |
2000 |
5 |
50 |
0〜80 |
Y160L-6 |
11 |
2517 |
|
DK600 |
600 |
7. 53 |
25 |
1. 8〜3. 9 |
Y90L- 6 |
1. 1 |
410 |
|
DK800 |
800 |
7. 53 |
30 |
3. 5 〜7. 6 |
Y90L- 6 |
1.1 |
600 |
|
DK1000 |
1000 |
7. 50 |
40 |
1.8〜16.7 |
Y100L- 6 |
1. 5 |
725 |
|
DK1300 |
1300 |
6. 5 |
50 |
4. 3 〜27. 9 |
Y132S- 6 |
3 |
846 |
|
DK1600 |
1600 |
6 |
60 |
7.03 〜48.6 |
Y132M1- 6 |
4 |
1980 |
|
DK1800 |
1800 |
5 |
70 |
9.26 〜60 |
Y132M2- 6 |
5.5 |
3070 |
|
DK2000 |
2000 |
5 |
80 |
13.6 〜88 |
Y132M2- 6 |
5.5 |
3260 |
