The DALI DUB135 is an underground rock bolting rig for mechanized roof, sidewall and lock-foot support in non-explosive mine environments. It integrates bolt-hole drilling, resin cartridge conveying and bolt installation, with published bolt lengths from 1,800 to 2,500 mm. A telescopic boom, three-position bolting head and compact articulated carrier support work across different roadway sections.
|
Specification |
Value |
|
Published working envelope |
3,500 × 3,500 to 8,800 × 7,100 mm |
|
Bolt length range |
1,800-2,500 mm, configuration-dependent |
|
Supported bolt types |
Resin bolt / pipe-seam friction bolt, as published |
|
Rock drill options |
Montabert HC25 / HC28 / HC50 |
|
Operating weight |
13,700 kg |
|
Optional mesh handler capacity |
Up to 50 kg |
Chat With Us
Leave Message
DUB135 is a mechanized underground bolter designed to combine drilling and bolt installation on one carrier. The bolting unit integrates hole drilling, resin cartridge delivery and bolt installation, reducing the need to move separate machines between these steps.
The rig is intended for systematic roof bolts, side bolts and lock-foot bolts in underground mine roadways described by the source as non-explosive environments. Its published working envelope ranges from 3.5 × 3.5 m to 8.8 × 7.1 m. Resin bolts and pipe-seam friction bolts are listed as applicable bolt types.
The bolting device combines bolt-hole drilling, resin cartridge conveying and bolt installation. This gives the operator one mechanized workflow for the main bolting steps and simplifies equipment coordination at the heading.
Montabert HC25, HC28 and HC50 rock drills are listed for different hole and bolt requirements. The selected rock drill must be matched with bolt length, drill steel, hole diameter, roadway height and bolting-device length.
Published bolt lengths range from 1,800 to 2,500 mm. The available lengths and corresponding drill depths differ by HC25, HC28 or HC50 bolting-head configuration, allowing the machine to be specified around the mine’s support design.
The single boom provides 1,500 mm feed-compensation extension, +65°/-30° lift and ±40° swing. These movements help position the bolting head for roof, sidewall and lock-foot holes across the roadway section.
Three independent pumps control the hydraulic drilling system. Anti-jamming, anti-idle percussion and automatic retraction functions help the operator respond to changing drilling resistance and limit unnecessary loading on drilling tools.
An optional mesh grab manipulator is listed for handling mesh weighing up to 50 kg. Required roadway height increases when the mesh handler is installed, so the selected bolting package and heading dimensions must be checked together.
The carrier uses four-wheel hydraulic drive and different front/rear track widths to support turning stability and access through narrower roadways. Published gradeability is 15°, with at least 260 mm ground clearance.
Before ordering, confirm the ground-support design rather than selecting by machine model alone. Provide the bolt type, bolt length, required hole diameter and depth, resin cartridge diameter, bolt pattern, roadway profile, rock condition and whether mesh handling is required.
Also confirm the available 380 V/50 Hz electrical supply, minimum 2 bar water inlet pressure, access route, turning space and destination-market safety requirements. The current page states that the DUB135 is for non-explosive environments; suitability for coal mines, gassy mines or hazardous atmospheres must not be assumed.
Published safety features do not establish explosion protection or compliance with a destination market. Required guarding, emergency systems, operator protection, fire suppression and certifications must be confirmed before quotation and use.
|
Parameter |
Specification |
|
Operating weight |
13,700 kg |
|
Overall dimensions (L × W × H) |
10,700 × 2,065 × 2,420 / 3,120 mm |
|
Published working envelope |
3,500 × 3,500 to 8,800 × 7,100 mm |
|

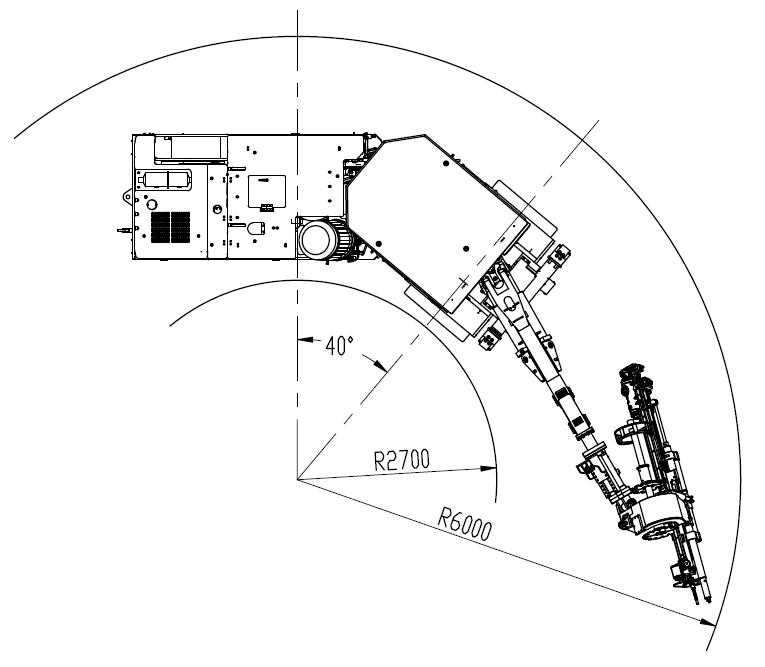

Turning radius |
≤6,000 mm |
|
Parameter |
HC25 |
HC28 |
HC50 |
|
Brand |
Montabert |
Montabert |
Montabert |
|
Hydraulic pressure |
110-150 bar |
130-160 bar |
110-130 bar |
|
Impact power |
8 kW |
10 kW |
13 kW |
|
Impact frequency |
55-65 Hz |
47-53 Hz |
45-62.5 Hz |
|
Maximum rotation torque |
401 N·m |
482 N·m |
305 N·m |
|
Rotation speed |
300 r/min |
300 r/min |
209 r/min |
|
Lubrication-air consumption |
300 L/min at 2 bar |
300 L/min at 3 bar |
300 L/min, pressure not stated |
|
Water consumption |
20-50 L/min |
30-60 L/min |
30-60 L/min |
The source lists hole-diameter ranges of 32-51 mm and 45-76 mm but does not clearly map both ranges to the three rock-drill options. Confirm the selected drill/bit range before publication and quotation.
|
Parameter |
Specification |
|
Boom quantity |
1 |
|
Feed-compensation extension |
1,500 mm |
|
Maximum lifting angle |
+65° / -30° |
|
Maximum swinging angle |
±40° |
|
Bolting-head configuration |
Published bolt lengths |
Drill depth range |
Required tunnel height |
Height with mesh handler |
|
HC25 × 2 |
1,800 / 2,000 / 2,200 / 2,500 mm |
1,970-2,600 mm |
3,400-4,070 mm |
3,600-4,270 mm |
|
HC28 × 2 |
2,000 / 2,400 mm |
2,190 / 2,470 mm |
3,776 / 4,120 mm |
3,976 / 4,320 mm |
|
HC50 × 2 |
2,000 / 2,400 mm |
2,180 / 2,545 mm |
3,780 / 4,220 mm |
3,980 / 4,420 mm |
Additional published values: drill-steel length 2,120-2,750 mm depending on configuration; device length 3,200-4,020 mm; bolting-device flip angle ±180°.
|
Parameter |
Specification |
|
Applicable bolt types |
Resin bolt / pipe-seam friction bolt, as published |
|
Resin cartridge diameter |
23-25 mm, listed as standard configuration |
|
Mesh grab manipulator |
Optional |
|
Maximum published mesh weight |
≤50 kg |
|
Published mesh-size value |
100 × 100 to 130 × 130; unit and definition require confirmation |
|
Parameter |
Specification |
|
Engine options |
Yuchai 66 kW / Cummins 74 kW |
|
Drive system |
Four-wheel hydraulic drive |
|
Gradeability |
15° |
|
Ground clearance |
≥260 mm |
|
Wheelbase |
2,800 mm |
|
Front / rear track width |
1,740 / 1,440 mm |
|
Fuel tank |
60 L |
|
Parameter |
Specification |
|
Drilling control |
Direct-acting multi-way valve control |
|
Hydraulic motor power |
55 kW |
|
Hydraulic oil tank / filtration |
240 L / 10 μm |
|
Air displacement / pressure |
600 L/min / 8 bar |
|
Air consumption |
300 L/min |
|
Water-pump power / rated flow |
3 kW / 5 m³/h |
|
Minimum water inlet pressure |
2 bar |
|
Rated / drilling flushing pressure |
12.4 bar / 10-15 bar |
|
Electrical component brands |
Siemens / Schneider |
|
Total installed power |
66 kW |
|
Voltage / frequency |
380 V / 50 Hz |
|
Cable length |
80 m |
|
Starting method |
Star/delta |
What is the DUB135 used for?
It is a mechanized underground rock bolting rig for drilling and installing systematic roof, sidewall and lock-foot bolts in non-explosive mine-roadway environments.
Which bolt types can it install?
The current page lists resin bolts and pipe-seam friction bolts. Final compatibility depends on bolt diameter, length, resin cartridge, hole diameter and the selected bolting-head configuration.
What bolt lengths are available?
Published bolt lengths range from 1,800 to 2,500 mm. Available lengths vary across the HC25, HC28 and HC50 configurations.
Can it install mesh?
An optional mesh grab manipulator is listed with a maximum published mesh weight of 50 kg. Adding it increases the required roadway height, depending on the selected bolting package.
Is the DUB135 explosion-proof?
The source specifically describes use in non-explosive environments. Do not specify it for an explosive or hazardous atmosphere unless DALI provides the required model-level certification and written confirmation.
What information is needed for a quotation?
Send the roadway profile, support drawing, bolt type and length, required hole diameter and depth, resin cartridge size, bolt spacing, rock condition, mesh-handling requirement, site utilities, destination country and required safety package.
