[Introduction] Pump for feeding press-filter.
[Capability] 20-330M3/h
[Application] It is widely used in petroleum, chemical, pharmaceutical, pesticide, dyestuff, paint, leather, paper, food and other industries.
Chat With Us
Leave Message
1. The pump adopts a semi-open impeller with wide flow passage and good throughput. There is no blockage when conveying slurry containing particles, and the particles will not be stuck between the impeller and the pump body and the pump cover.
2. Simple structure and easy maintenance.
3. Its special hydraulic performance coincides with the gradual process of filter press from cavity to filling and then to drying.
4. Use valves to control flow rate to prevent motor overload caused by excessive flow rate. At the same time, low pressure will not impact the filter plate frame and reduce the damage to the filter cloth.

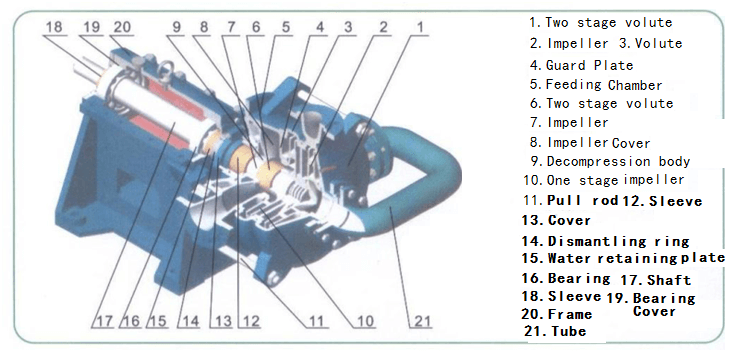

The structure design of two-stage impeller adopts double pump body, which solves the shortcomings of single impeller pump such as excessive vibration and noise, flat performance curve, narrow impeller passage and poor performance in the initial stage of feeding. It is very suitable to meet the requirements of high-flow, low-pressure feeding and low-flow, high-pressure filtering when the pressure filter feeds.
|
Model |
Flow m3/h |
Lifting Height m |
Revolution rpm |
Power kw |
For press-filter m2 |
|
50ZJE65-22 |
20-70 |
30-65 |
1450 |
22 |
40-60 |
|
50ZJE75-30 |
20-70 |
35-75 |
1450 |
30 |
40-70 |
|
50ZJE76-37 |
20-100 |
30-76 |
1450 |
37 |
60-120 |
|
65ZJE80-45 |
35-125 |
35-80 |
1450 |
45 |
60-120 |
|
80ZJE65-45 |
40-140 |
30-65 |
1450 |
45 |
80-150 |
|
80ZJE75-55 |
50-160 |
35-75 |
1450 |
55 |
80-150 |
|
100ZJE75-75 |
70-245 |
30-75 |
1450 |
75 |
100-200 |
|
100ZJE80-90 |
50-280 |
35-80 |
1450 |
90 |
100-200 |
|
125ZJE70-90 |
80-300 |
30-70 |
1450 |
90 |
150-250 |
|
150ZJE75-110 |
80-330 |
35-75 |
1450 |
110 |
150-300 |
