[Introduction] Used to remove magnetic substances from bulk nonmagnetic materials.
[Material size] less than 200 mm

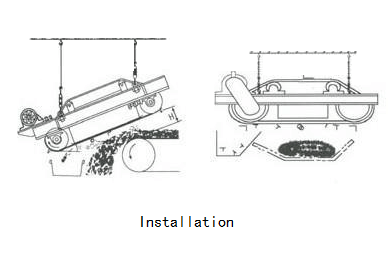

[Application] Electromagnetic iron remover is an electromagnetic device used to remove magnetic substances from dispersed non-magnetic materials. It is usually installed in the head or middle of belt conveyor. The strong magnetic force generated by electrification will suck up the iron mixed in the material and throw it out by the iron strip, so as to automatically remove the magnetic material and protect the normal work of crusher, grinder and plate iron remover. The iron remover is widely used in electric power, mining, metallurgy, building materials, coal preparation, chemical industry and other industries.
[Improvement] The magnetic circuit is designed by computer simulation, which has large permeability depth and strong magnetic force.

Chat With Us Leave Message
  1. The magnetic circuit is designed by computer simulation. It has large permeability depth and strong magnetic force.
  2. Resin casting, self-cooled fully sealed structure, dust-proof, rain-proof, corrosion-resistant.
  3. Automatic unloading, easy maintenance, drum waist structure, with belt automatic deviation correction function, special fully sealed bearing seat, can achieve long-term trouble-free operation.
  4. The product has strong matching, manual and centralized control functions, and can meet the requirements of various occasions.
  5. It can effectively absorb 0.1-35 kg of ferromagnetic materials mixed in non-magnetic materials.

Resin casting and self-cooling fully sealed structure are adopted in the interior. It has the characteristics of high permeability, strong suction, dust-proof, rain-proof and corrosion-resistant, and can still operate reliably in extremely harsh environment.

Model

Cooling Method

Belt Width

mm

Power

kw

Hanging Height

mm

Material Size

mm

Belt Speed

m/s

Weight

kg

RCDA-5

Forced air cooling

500

1

150

< 100

< 2.5

450

RCDA-6

600

1.6

175

< 150

620

RCDA-8

800

2

250

< 200

960

RCDB-5

Nature air cooling

500

1

150

< 110

400

RCDB-6

600

1.6

175

< 140

600

RCDB-8

800

3

250

< 200

950

RCDC-5

Forced air cooling / Automatic iron unloading

500

1.2

150

< 100

1100

RCDC-6

600

2

175

< 150

1300

RCDC-8

800

3.5

250

< 200

2200

RCDD-5



500

1

150

< 110



1000

RCDD-6

Nature air cooling / Automatic iron unloading

600

1.8

175

< 140



1350
