Traditional slurry mixing tank

Ordinary Agitation Tank

[Introduction] Traditional slurry mixing tank
[Volume] 0.0785-45m3
[Application] Ordinary agitation tank is mainly used for pulp agitation before flotation operation, so that reagents and pulp are fully mixed. It can also be used in chemical industry, building materials industry, slurry mixing, cyanide chemical plant, sewage treatment plant and other industries.
[Improvement] Cylinder body can be lined with anti-wear and anti-corrosion rubber liner, which can effectively prolong the service life of equipment.

Chat With Us Leave Message

1. The cylinder body can be lined with high wear-resistant rubber, which has strong anti-corrosion and wear resistance.

2. Strong impeller mixing ability.

3. Stable operation and convenient maintenance.

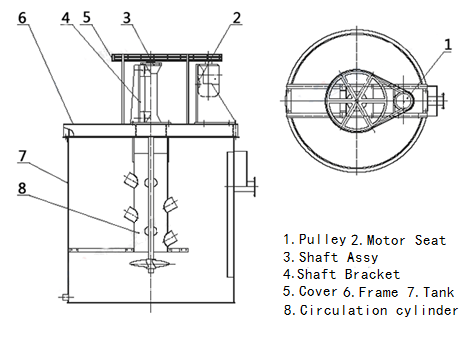

Under the rotating action of the impeller, the slurry is discharged from the lower end of the impeller along the axis, and a negative pressure is formed in the impeller chamber. The slurry from the upper part of the agitation tank flows into the impeller chamber to supplement it. At the same time, under the diversion effect of the stabilizer plate, the pulp in the trough forms a vertical circulating flow downward from the center and upward from all sides. When the ascending velocity of pulp is greater than the settling velocity of ore particles, the ore particles in the pulp will be suspended and keep uniform concentration.

Model

Volume

M3

Impeller Revolution

rpm

Impeller Diameter

mm

Motor Model

Motor Power

kw

Weight

kg

BJ-500X500

0.0785

493

160

Y80L-4

0.55

120

BJ-750X750

0.25

530

240

Y100L-6

1.5

240

BJ-1000X1000

0.58

530

310

Y100L-6

1.5

680

BJ-1500X1500

2.2

320

400

Y132S-6

3

790

BJ-1600X1800

2.6

331

400

Y132M2-6

5.5

990

BJ-2000X2000

4.4

230

550

Y132M2-6

5.5

1800

BJ-2000X2500

5.9

230

630

Y160M-6

7.5

2106

BJ-2500X2500

9.2

230

630

Y160M-6

7.5

2766

BJ-3000X3000

14.8

210

700

Y225S-8

18.5

4613

BJ-3500X3500

24

230

850

Y225M-8

22

5980

BJ-4000 X 4000

45

153

1000

Y250M-8

30

8910
