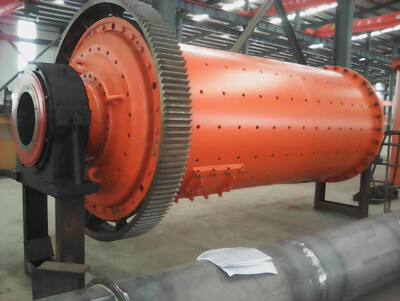

Overflow Grinding Mill

[Introduction] Ball mill with simple structure and self-flowing pulp discharging.

[Cylinder] 900-4500mm diameter

[Application] Often used to grind ores with smaller fineness.

[Improvement] The cylinder of a wet overflow ball mill can use high wear-resistant rubber liner, which has good wear resistance, long service life, and convenient maintenance.

Chat With Us Leave Message

Advantages

  1. Equipped with a lifting device for easy maintenance.
  2. Static and dynamic bearing, stable and reliable operation.
  3. Slow-speed transmission, easy to repair and start.
  4. Oil mist lubrication device to ensure reliable lubrication of large and small gears.
  5. Flexible start of the gas clutch.



Structure

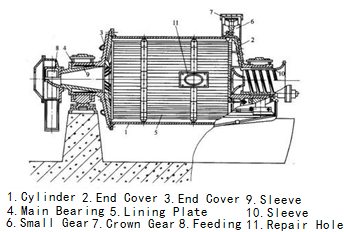

The main component of the wet overflow ball mill is a cylinder with a smaller diameter and larger length. It is supported by rolling bearings. It rotates slowly through the transmission device. Ores are fed into the cylinder from the feeding end of the cylinder. In the cylinder, due to the drop impact and self-grinding of steel balls and ore itself, the material is crushed.

Due to the continuous feeding of ores, the pressure causes the slurry in the cylinder to move from the feeding end to the discharging end, and the pulp overflows spontaneously above the lower edge of the hollow shaft at the discharging end. The hollow shaft has anti-helical blades, which can return the overflow steel balls and rough ore blocks to the mill.



Technical Parameter

Model

Cylinder

Motor Model

Power
kw

Installation Size mm

Volume
m3

Ball Loading

t

Weight

kg

Diameter
mm

Length
mm

Length

Width

Height

MQY0918

900

1800

Y225M-8

22

5080

2300

2015

0.9

1.66

6078

MQY1212

1200

1200

Y225S-8

18.5

5788

2994

2540

1.14

2.4

11473

MQY1224

1200

2400

YR280S-8

55

6112

2794

2540

2.28

3.8

12308

MQY1515

1500

1500

JR115-8

60

5766

2945

2600

2.2

6.4

15424

MQY1530

1500

3000

JR125-8

95

7979

2945

2600

5

10

18690

MQY2122

2100

2200

JR128-8

155

8070

4840

3795

6.6

14

47800

MQY2130

2100

3000

JR137-8

210

8870

4840

3795

9

20

47220

MQY2136

2100

3600

JR137-8

210

9300

4840

3795

10.8

22

52010

MQY2145

2100

4500

JR148-6

310

11029

4738.6

3300

13.5

23.8

58305

MQY2430

2400

3000

JR1410-8

280

9710

4778

4120

12.1

23

65880

MQY2721

2700

2100

JR1410-8

280

9400

5600

4700

10.7

24

63900

MQY2736

2700

3600

TDMK400-32

400

13049

5800

4680

17.8

32

96570

MQY2740

2700

4000

TDMK400-32

400

11850

5667

4496

20.4

40

78800

MQY3231

3200

3100

TDMK630-36

630

12750

6760

5150

21.4

45

107660

MQY3245

3200

4500

TDMK630-36

630

14356

7200

5152.5

32.8

65

130283

MQY3254

3200

5400

TM1000-36/2600

1000

15800

6760

5200

37.2

73

121000

MQY3645

3600

4500

TM1000-36/2600

1000

15000

7200

6326

41.8

76

135000

MQY3650

3600

5000

TM1250-40/3250

1250

17157

7755

6326

46.4

86

145000

MQY3660

3600

6000

TM1250-40/3250

1250

19000

7755

6326

55.7

102

154000

MQY3690

3600

9000

TDMK1800-30

1800

28000

4600

5600

83

163

212000

MQY3867

3800

6700

TDMK1600-30

1600

19000

8200

7100

70

130

186000

MQY4067

4000

6700

TDMK1800-30

1800

15600

9600

7300

78

138

207000

MQY4561

4500

6100

TDMK2200-30

2200

18200

10500

7600

93

151

238000
