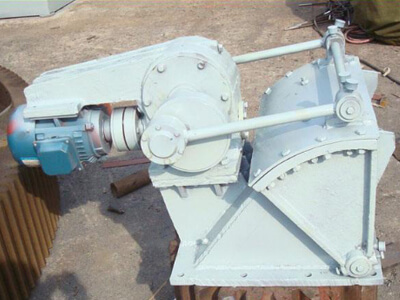

Pendulum Feeder

[Introduction] Pendulum feeder is a continuous and uniform feeding equipment, installed under the storage tank or funnel.
[Capability] 4.5-25t/h
[Application] It is widely used in mining, construction, chemical industry, cement and building materials industries.
[Improvement] Worm wheel reducer is adopted, which has compact structure and reliable sealing device.

Chat With Us Leave Message
  1. Installed under the storage tank or funnel, the conveying particle size is not more than 50mm. It is suitable for dry materials, and not suitable for powder conveying.
  2. The machine can also be used as a latch when it is not working.

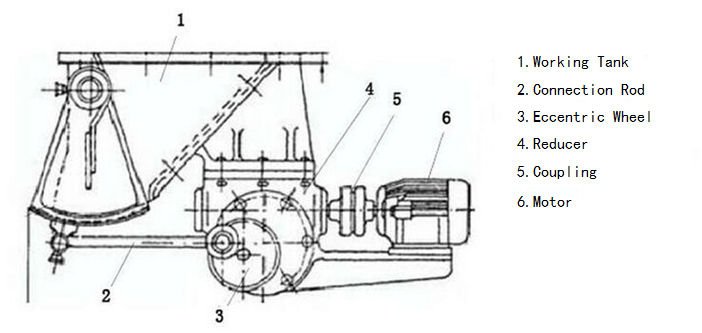

This machine uses the principle of eccentric wheel mechanism to make jaw plate do periodic reciprocating motion to convey material continuously and evenly. Its original power is to rely on the motor to drive the eccentric wheel through the turbine reducer, and then link the circular motion into reciprocating motion, driving the jaw plate reciprocating motion. When the jaw plate swings clockwise, the material accumulated on it is driven to move together by friction, and a part of new material is dropped from the bucket to fill the space formed outside the body. When the jaw plate moves counterclockwise, the material can no longer follow the jaw plate into the body because of the obstruction of the internal material, so it is pushed under it. In the feeding hopper of conveyor or conveyor, with the periodic swing of jaw plate, the continuous uniform feeding of material can be made.

Model

Feeding Inlet

mm

Discharge Outlet

mm

Max Feeding Size

mm

Capacity

t/h

Motor

Weight

kg

Model

Power

kw

250X250

250X250

250*30-115

25

4.5

Y801-4

0.55

130

300X300

300X300

300*30-125

30

6.5

Y802-4

0.75

272

400X400

400X400

400*50-130

35

12

Y90S-4

1.1

558

600X600

600X600

600*50-150

50

25

Y90L-4

1.5

613
