Peripheral Transmission Thickener

Peripheral Transmission Thickener

[Introduction] It is divided into two forms, peripheral roller drive and peripheral rack drive.

[Capability] 88-3400t/d

[Application] It is mainly used for dewatering treatment of wet separation and concentrating in mineral processing, as the first stage of concentrated dewatering. Generally set between the cleaning and filtering equipment, sometimes used for dehydration before the cleaning, but also used in the chemical industry for dehydration operations.

[Improvement] Single-row cross-column rotary support or single-row four-point contact spherical rotary support are selected. The collector has good insulation and the exposed rotary parts have portable protective cover.

Chat With Us Leave Message

Advantages

  1. Adding degassing tank to eliminate solid particles adhering to bubbles.
  2. Buffer box is added on the central support to prevent overflow caused by the overflow of pulp.
  3. The center support is rotary, compact structure, good sealing, steel ball and arc raceway contact at four points, can withstand axial force, radial force and overturning moment at the same time, easier maintenance, convenient refueling, and prolonged practical life.
  4. The feeding barrel is moved down to make the feeding pulp fall evenly and smoothly, thus effectively preventing the overturning phenomenon caused by the rock pressure.
  5. Adding flocculant adding the device to the feeding pipe can increase the processing capacity by 3-6 times.



Structure

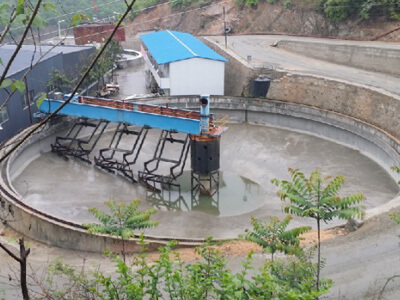

Peripheral driving thickener is mainly composed of rake, trough frame, central bracket, collector, transmission device, etc. Its transmission device is to transfer the motion and power of motor to the truss hanging on the target, make the truss rotate uniformly around the center in the pool, and target the concentrate product to the outlet of the bottom center of the pool, in which the slurry in the pool is deposited on the gravity sedimentation pool. Sludge at the bottom is continuously scraped and collected by a rake dredger and discharged from the central outlet at the bottom of the pond. The upper part is the overflow water, which overflows from all sides of the pond to complete the solid-liquid separation.



Technical Parameter

Model

Diameter

mm

Depth

mm

Capacity

t/d

Area

m2

Motor

Power

kw

Weight

kg

DLNT-15

15000

3500

88～390

177

Y132M2-6

5.5

11702

DLNT-18

18000

3700

127~560

255

Y132M2-6

5.5

12120

DLNT-24

24000

3400

226~1000

452

Y160M-6

7.5

28270

DLNT-30

30000

3940

353~1570

707

Y160M-6

7.5

31000

DLNT-45

45000

5025

790~2400

1590

Y160L-6

11

58640

DLNT-53

53000

5070

1000~3400

1964

Y160L-6

11

69410

DLNG-15

15000

3612

88～390

177

Y132M2-6

5.5

11702

DLNG-18

18000

3500

127~560

255

Y132M2-6

5.5

9718

DLNG-24

24000

3400

226~1000

452

Y160M-6

7.5

24000

DLNG-30

30000

3940

353~1570

707

Y160M-6

7.5

31000

DLNG-45

45000

5060

790~2400

1590

Y160L-6

11

50640

DLNG-53

53000

5070

1000~3400

2202

Y160L-6

11

60910
