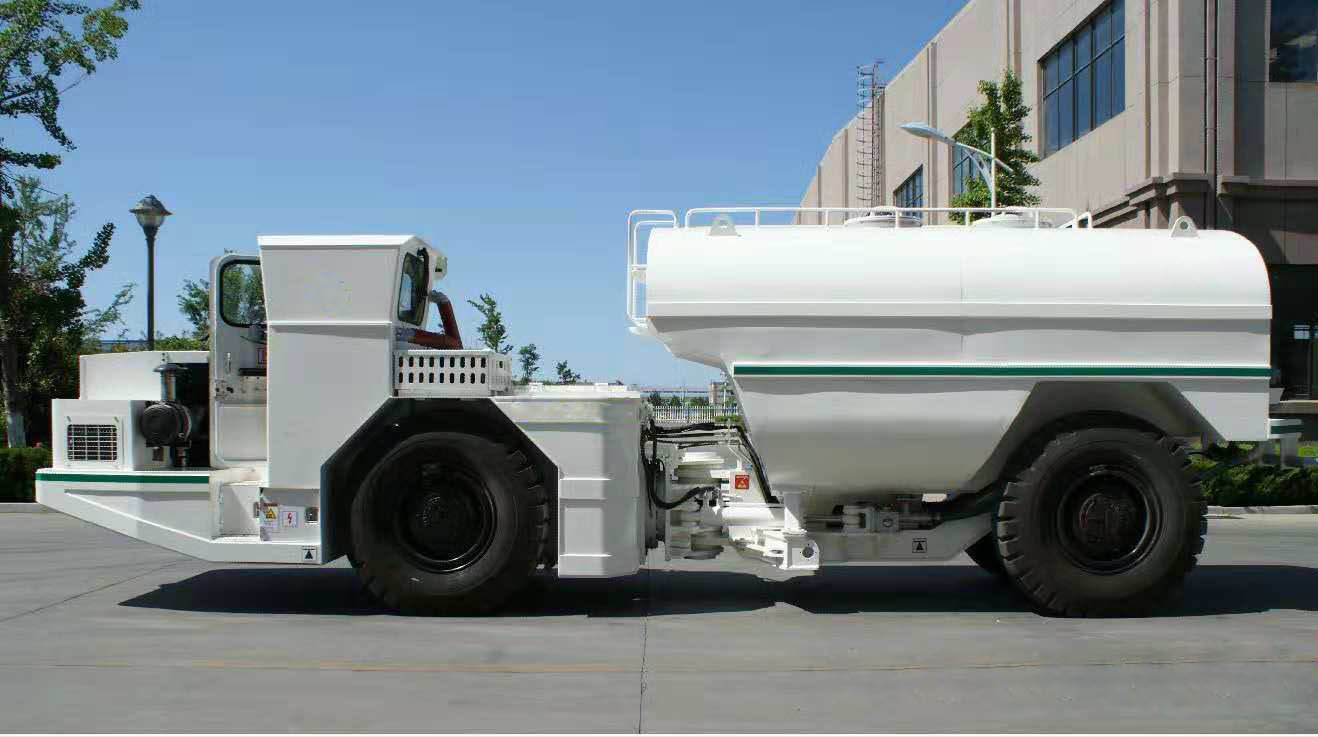

DALI underground sprinkler trucks are listed with 9, 12 and 15 m3 water-tank options for mine-road wetting and site water delivery. A 40-degree articulated frame, four-wheel drive and braking, SAHR brake arrangement and traction differentials support travel on underground roadways. Spray-system performance and refill logistics require configuration.
|
Item |
Published Detail |
|
Tank volume |
9 / 12 / 15 m3 |
|
Steering |
Articulated frame, 40-degree steering angle |
|
Drive / braking |
Four-wheel drive and four-wheel braking |
|
Brake type |
SAHR – spring applied, hydraulic release |
|
Differentials |
Front NO-SPIN; rear anti-slip |
|
Monitoring |
Oil-temperature, oil-pressure and electrical-system alarms |
Chat With Us
Leave Message
Tank capacity determines how much water the vehicle carries, but not how well it wets a mine road. Route length, application rate, refill distance, pump output, nozzle arrangement and operating speed determine coverage and cycle time.
The current page does not publish pump, spray bar, nozzle or coverage data. These items should be defined before the 9, 12 or 15 m3 version is selected.
Choose 9, 12 or 15 m3 by required water per cycle, refill availability and route limits. Confirm payload, gross mass and axle loads with the selected tank full.
The page lists 40-degree frame articulation. The final vehicle dimensions, turning radius and tank overhang are still needed for route clearance.
Four-wheel drive/braking, SAHR brake integration, front NO-SPIN and rear anti-slip differentials are listed for the carrier. Verify braking performance at full water load and on the site’s gradients.
Oil-temperature, oil-pressure and electrical-system alarms are published. Water level, pump protection and spray controls are not described and should be specified separately.
|
Parameter |
Published Value |
|
Tank capacity |
9 / 12 / 15 m3 |
|
Steering angle |
40 degrees |
|
Operator structure |
Ergonomic canopy listed |
|
Brake system |
Four-wheel braking; combined service/parking SAHR |
|
Differentials |
Front NO-SPIN; rear anti-slip |
|
Cab condition |
Low vibration level stated; test basis not published |
That depends on route length, water application rate, refill time, gradients and allowable vehicle size. Provide these inputs for a cycle estimate.
No. Pump output, nozzles, spray width, droplet distribution and application rate are not published on the current page.
No compatibility is stated. Tank, seals, pump and regulatory requirements must be verified for any other liquid.
Send desired tank volume, route profile, water source, spray width, flow/application target, operating hours and destination country.
